Individual hose record

KHJ14930 Hose Repair Specifications

Excavator · Case · CX230B · Grease Lines

Finished length1,400 mm

Locate this hose

Installation diagram — Pipe No. 10

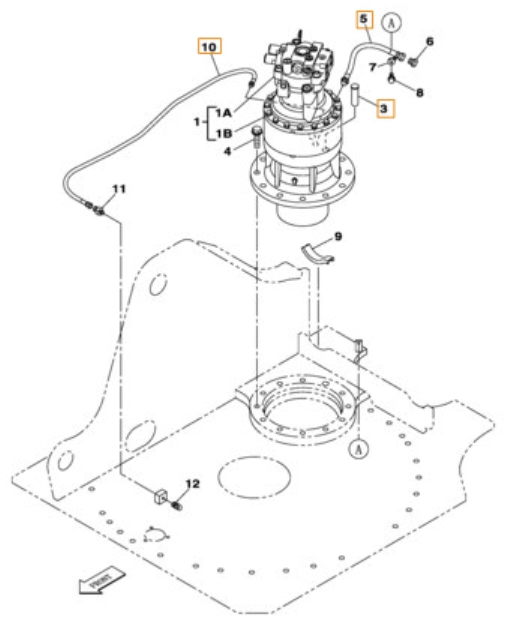

Locate Pipe No. 10 in the diagram, then confirm part number KHJ14930 before removing the hose.

Case CX230B installation diagram showing hydraulic hose KHJ14930 at Pipe No. 10
Case CX230BPart KHJ14930 · Pipe No. 10Open full-size diagram

Repair specifications

Part number
KHJ14930
Diagram pipe number
10
Installation route
回转马达黄油管
Hose specification
DN6;1SN-04;22.5MPa
Finished length
1,400 mm
Working pressure
22.5 MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 8

KHJ2068

Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管

Length
2,250 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
View full repair specifications

Diagram Pipe No. 31

KHJ2048

Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管

Length
750 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
View full repair specifications

Diagram Pipe No. 10

KHJ2174

Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管

Length
3,100 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
View full repair specifications

Diagram Pipe No. 13

KHJ2292

Installation route: 大臂油缸黄油管

Length
280 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
View full repair specifications

Diagram Pipe No. 22

KHJ2048

Installation route: 分节油缸黄油管

Length
750 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting
90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
View full repair specifications
