Individual hose record
KHJ2249 Hose Repair Specifications
Excavator · Case · CX260C LC · Attachments – Lock Valve
Finished length950 mm
Locate this hose

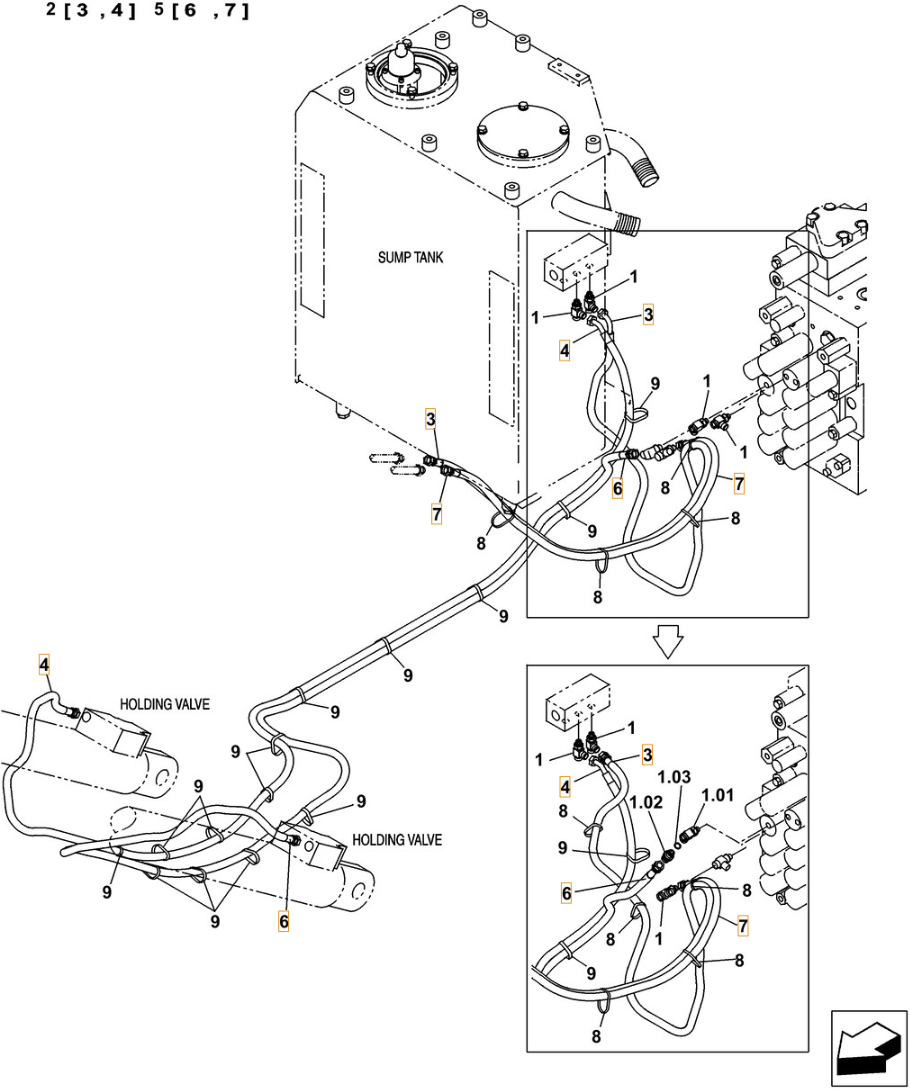

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number KHJ2249 before removing the hose.
Repair specifications
- Part number
- KHJ2249
- Diagram pipe number
- 3
- Installation route
- 大臂(小臂油缸锁止阀)~液压油箱过渡阀块
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 950 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
