Individual hose record
DS2093529 Hose Repair Specifications
Excavator · Doosan · DX55W · Attachments – Breaker
Finished length1,050 mm
Locate this hose

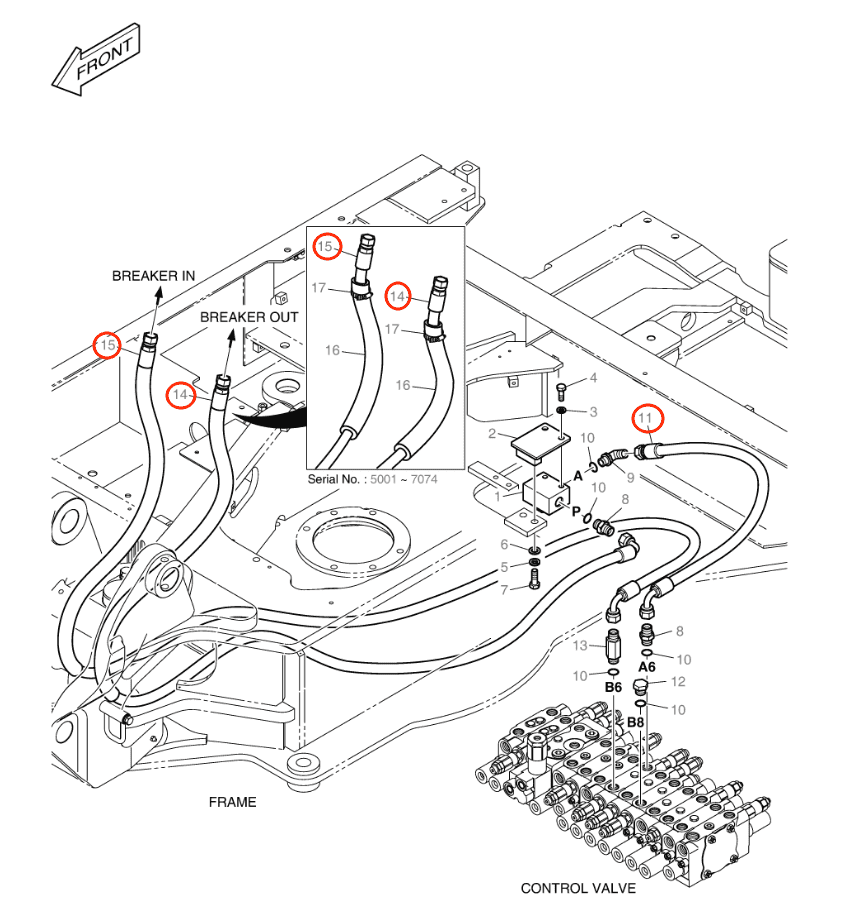

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number DS2093529 before removing the hose.
Repair specifications
- Part number
- DS2093529
- Diagram pipe number
- 11
- Installation route
- 分配阀A6口~开关阀A口
- Hose specification
- -
- Finished length
- 1,050 mm
- Left fitting
- Female threadOriginal Chinese: 内螺纹
- Right fitting
- 90° elbow, female threadOriginal Chinese: 90°内螺纹
- Quantity
- 1
