Individual hose record
DS2058434 Hose Repair Specifications
Excavator · Doosan · DX55W · Attachments – Breaker
Finished length960 mm
Locate this hose

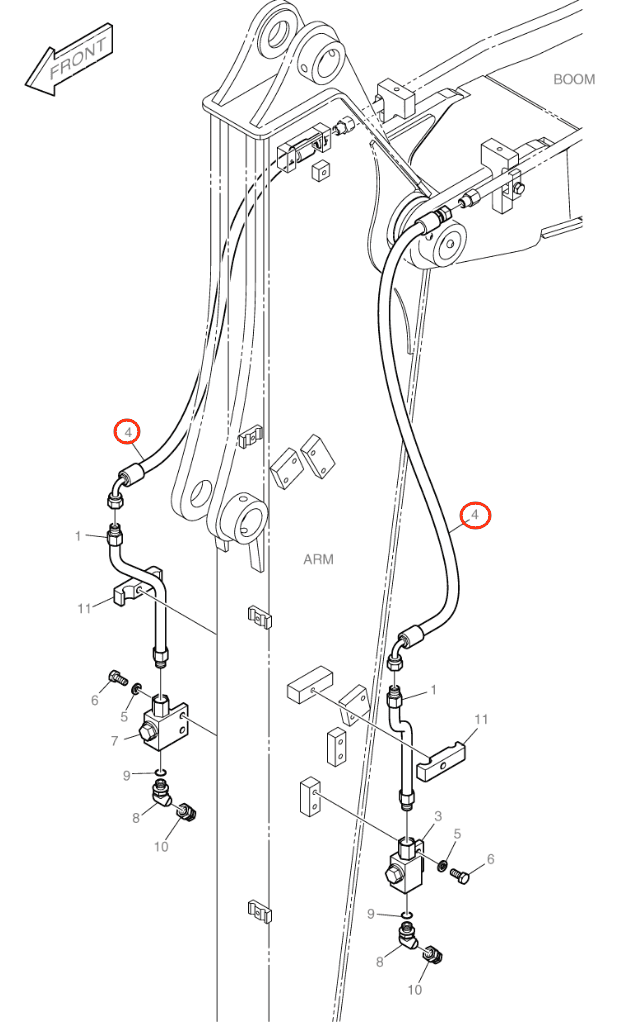

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number DS2058434 before removing the hose.
Repair specifications
- Part number
- DS2058434
- Diagram pipe number
- 4
- Installation route
- 小臂破碎器截止阀
- Hose specification
- 28MPa
- Finished length
- 960 mm
- Working pressure
- 28 MPa
- Left fitting
- Female threadOriginal Chinese: 内螺纹
- Right fitting
- 90° elbow, female threadOriginal Chinese: 90°内螺纹
- Quantity
- 2
