Individual hose record

KHJ1233 Hose Repair Specifications

Excavator · Case · CX130 · Hydraulic Pump

Finished length2,150 mm

Locate this hose

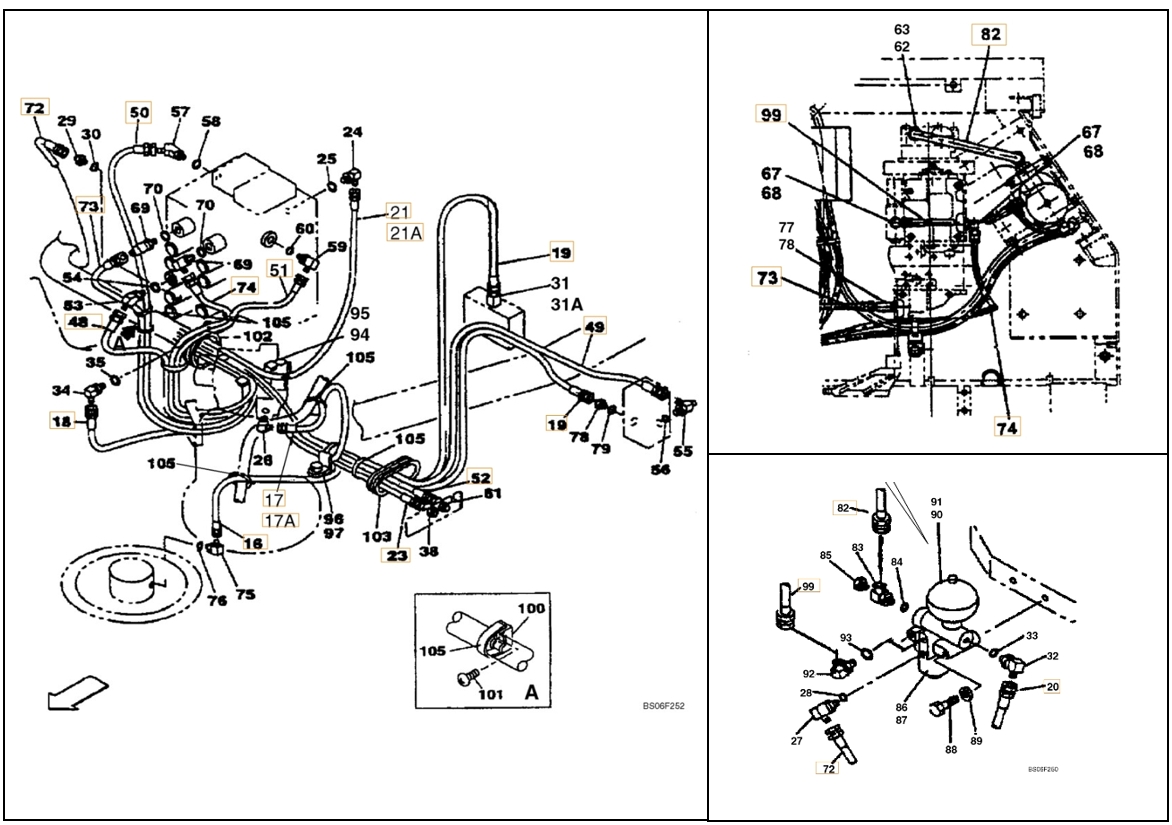

Installation diagram — Pipe No. 73

Locate Pipe No. 73 in the diagram, then confirm part number KHJ1233 before removing the hose.

Part number: KHJ1233
Diagram pipe number: 73
Installation route: 液压泵左~分配阀前
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,150 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 74

Installation route: 液压泵左~分配阀前

Length: 1,900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 71

Installation route: 液压泵右~分配阀前

Length: 1,900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 74

Installation route: 液压泵右~分配阀前

Length: 2,600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 82

Installation route: 液压泵左~先导滤芯

Length: 350 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 6

Installation route: 先导泵~吸油铁管

Length: 550 mm
Specification: DN19;1SN-12;10.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 英制外螺纹平面密封
