Individual hose record
4628957 Hose Repair Specifications
Excavator · Hitachi · ZX300LC-6N · Control Valve
Finished length900 mm
Locate this hose

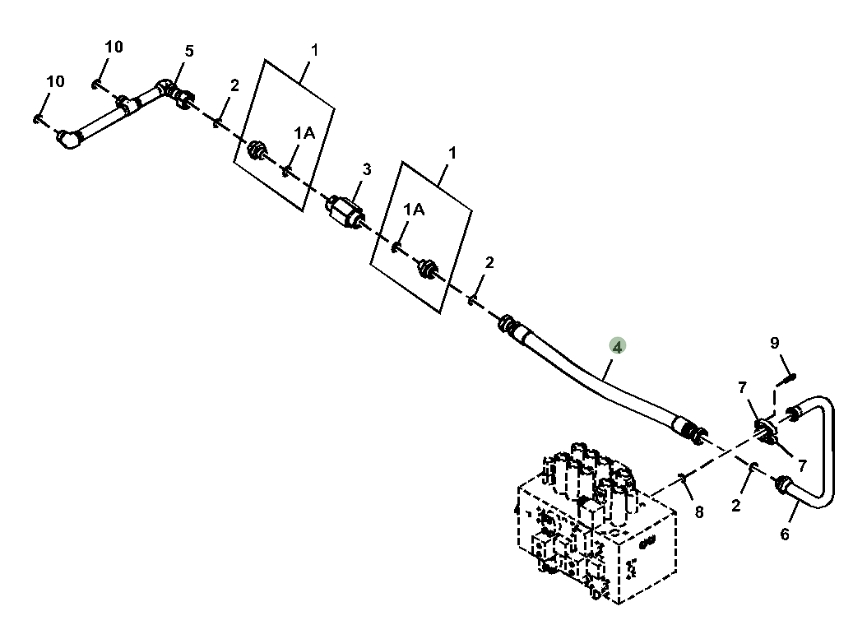

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 4628957 before removing the hose.
Repair specifications
- Part number
- 4628957
- Diagram pipe number
- 4
- Installation route
- 分配阀右~铁管(大臂油缸)
- Hose specification
- DN32;6SH-20;42MPa
- Finished length
- 900 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
