Individual hose record
KAJ3619 Hose Repair Specifications
Excavator · Case · CX490D LC · Attachments
Finished length950 mm
Locate this hose

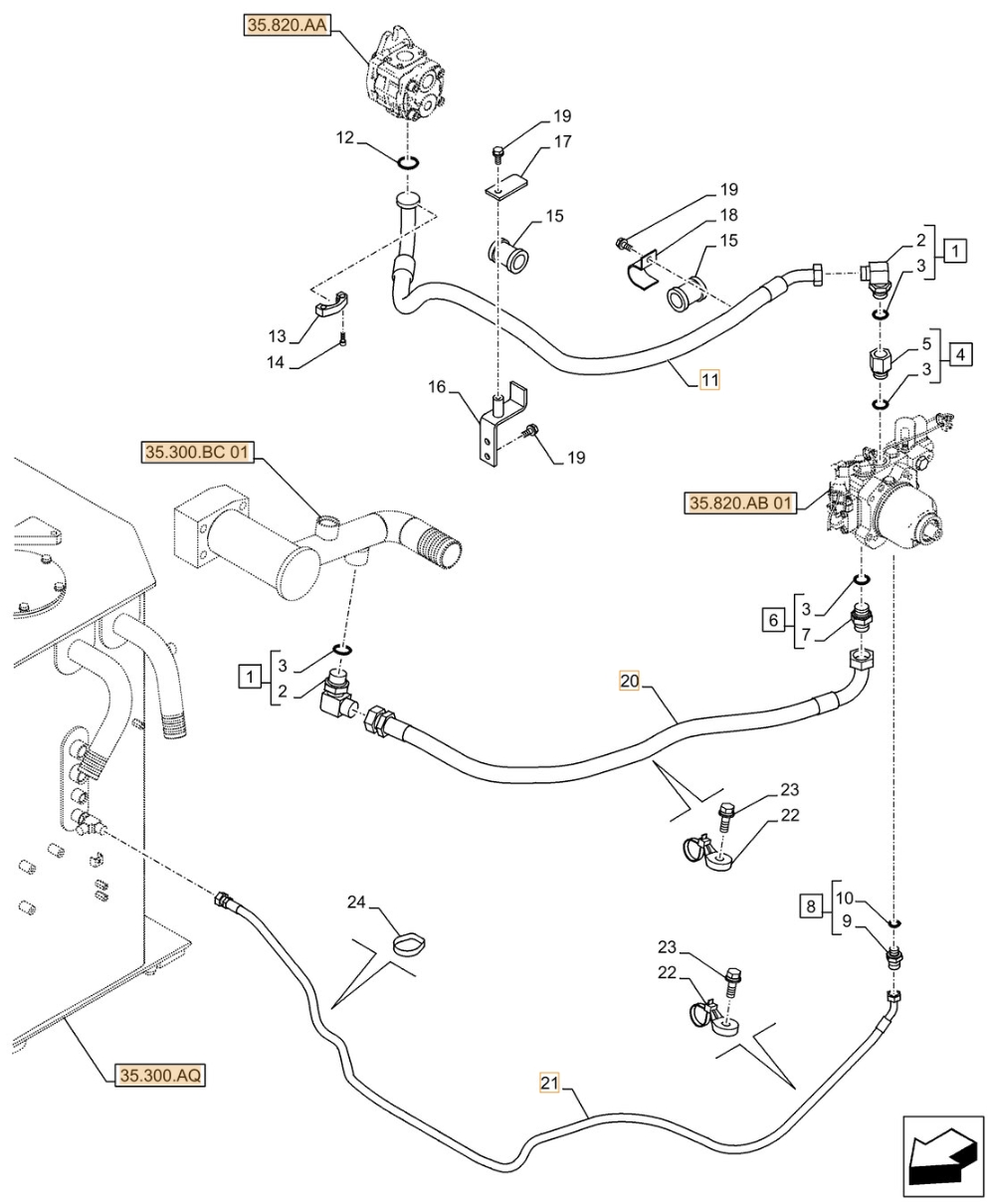

Installation diagram — Pipe No. 20
Locate Pipe No. 20 in the diagram, then confirm part number KAJ3619 before removing the hose.
Repair specifications
- Part number
- KAJ3619
- Diagram pipe number
- 20
- Installation route
- 回油铁管(分配阀)~风扇马达
- Hose specification
- DN19;2SN-12;21.5MPa
- Finished length
- 950 mm
- Working pressure
- 21.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
