Individual hose record
DS2119126 Hose Repair Specifications
Excavator · Doosan · DX140LCR-5 · Pedal
Finished length310 mm
Locate this hose

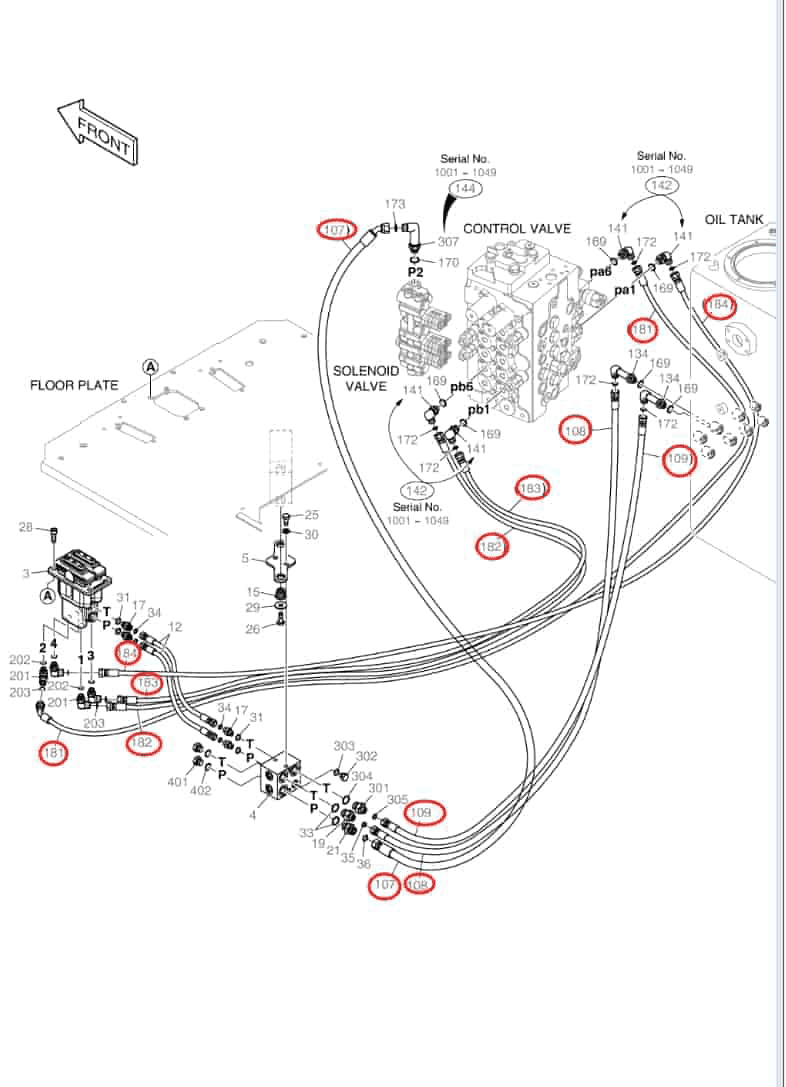

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number DS2119126 before removing the hose.
Repair specifications
- Part number
- DS2119126
- Diagram pipe number
- 12
- Installation route
- 行走踏板~进回油阀
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 310 mm
- Working pressure
- 22.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
