Individual hose record
4366763 Hose Repair Specifications
Excavator · Hitachi · EX400LC-3 · Solenoid Valve
Finished length1,900 mm
Locate this hose

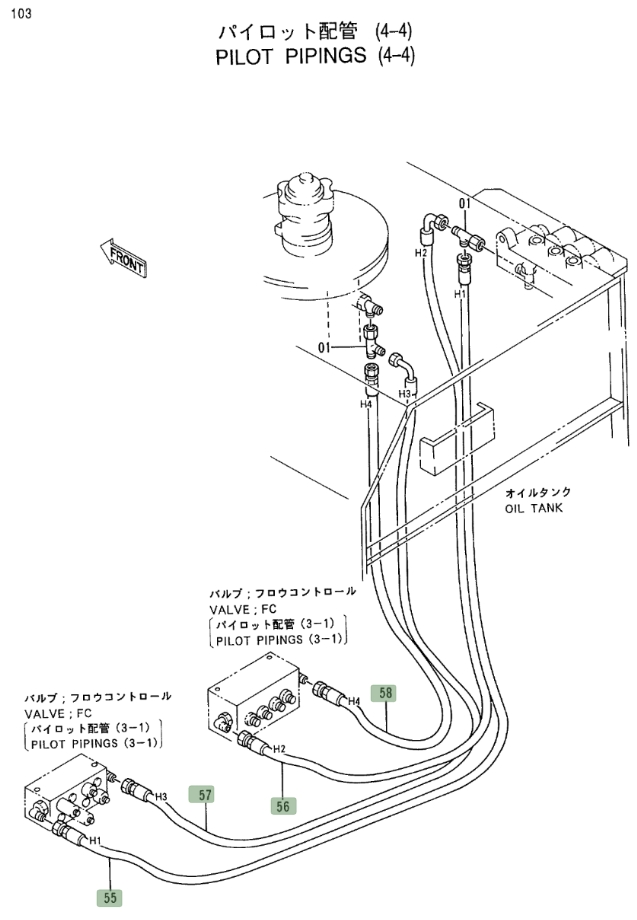

Installation diagram — Pipe No. 55
Locate Pipe No. 55 in the diagram, then confirm part number 4366763 before removing the hose.
Repair specifications
- Part number
- 4366763
- Diagram pipe number
- 55
- Installation route
- 电磁阀~中转接头(手柄)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,900 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
