4648205 Hose Repair Specifications

Excavator · Hitachi · ZX350LC-3 · Attachments – Breaker

Finished length650 mm

Locate this hose

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 4648205 before removing the hose.

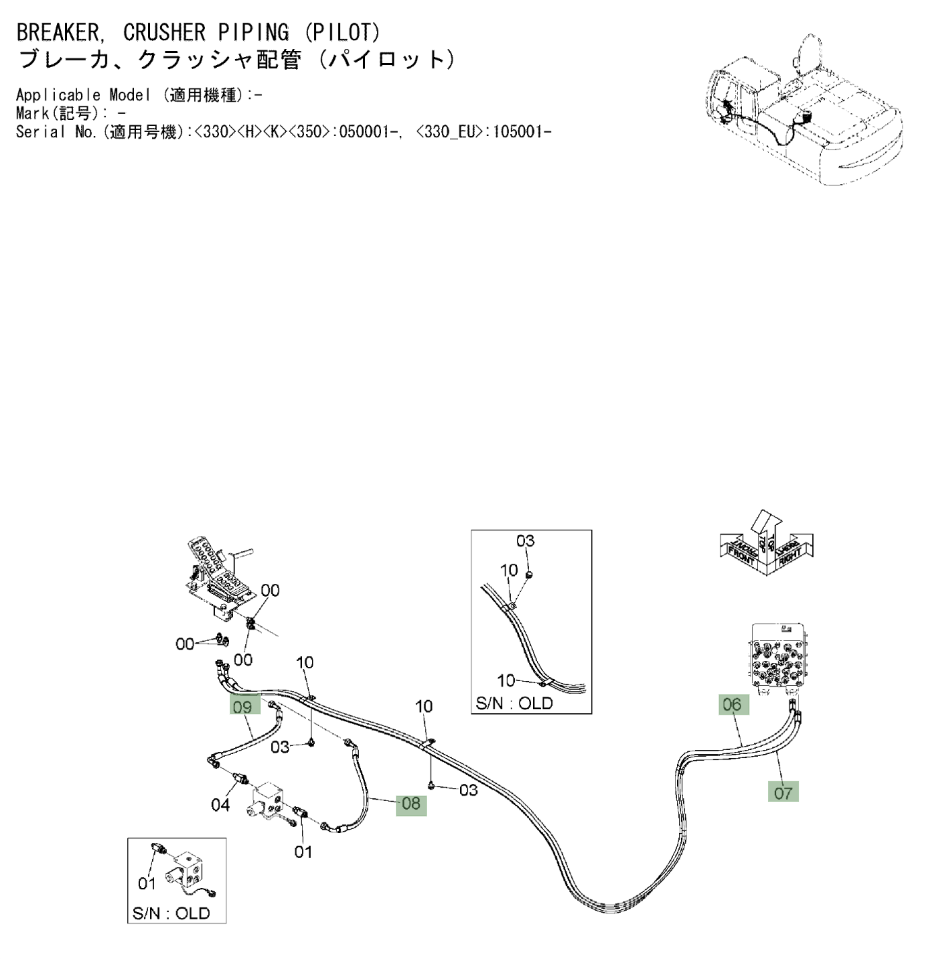

Hitachi ZX350LC-3 installation diagram showing hydraulic hose 4648205 at Pipe No. 8 — **Hitachi ZX350LC-3**Part 4648205 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 4648205
Diagram pipe number: 8
Installation route: 破碎器踏板~进回油阀
Hose specification: DN10;1SN-6;7Mpa
Finished length: 650 mm
Working pressure: 7 MPa
Left fitting: 45°美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 9

4648204

Installation route: 破碎器踏板~进回油阀

Length: 550 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 45°美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 61

4655142

Installation route: 过渡阀块(破碎器)~回油铁管(液压油箱)

Length: 1,000 mm
Specification: DN31;1SN-20;6.3Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 6

4650195

Installation route: 大臂(前段)~大臂(后段)

Length: 1,700 mm
Specification: DN32;4SP-20;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 5

4642276

Installation route: 小臂破碎器截止阀右

Length: 1,650 mm
Specification: DN32;4SP-20;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 34

4650840

Installation route: 大臂(前段)~大臂(后段)

Length: 1,650 mm
Specification: DN32;6SP-20;34.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 6

4404486

Installation route: 大臂(后段)~卸压安全阀(破碎器)

Length: 600 mm
Specification: DN25;4SP-16;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 41

4651216

Installation route: 电磁阀~电磁阀(破碎器)

Length: 1,950 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 19

4260311

Installation route: 大臂(后段)~卸压安全阀(破碎器)

Length: 700 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
