Individual hose record

9235478 Hose Repair Specifications

Excavator · Hitachi · ZX370 · Swivel Joint

Finished length960 mm

Locate this hose

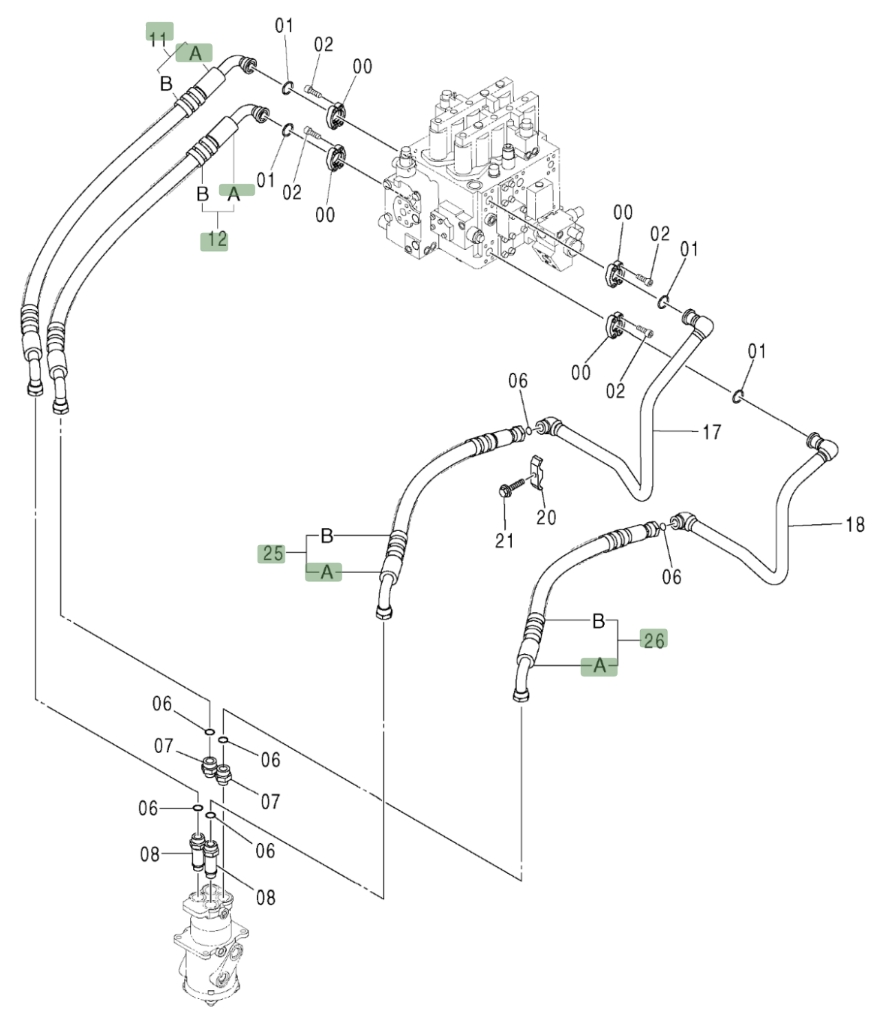

Installation diagram — Pipe No. 26

Locate Pipe No. 26 in the diagram, then confirm part number 9235478 before removing the hose.

Hitachi ZX370 installation diagram showing hydraulic hose 9235478 at Pipe No. 26 — **Hitachi ZX370**Part 9235478 · Pipe No. 26Open full-size diagram

Repair specifications

Part number: 9235478
Diagram pipe number: 26
Installation route: 回转接头~分配阀左下
Hose specification: DN25;4SH-16;34.5Mpa
Finished length: 960 mm
Working pressure: 34.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 1
