Individual hose record

4294424 Hose Repair Specifications

Excavator · Hitachi · ZX370 · Swivel Joint

Finished length2,250 mm

Locate this hose

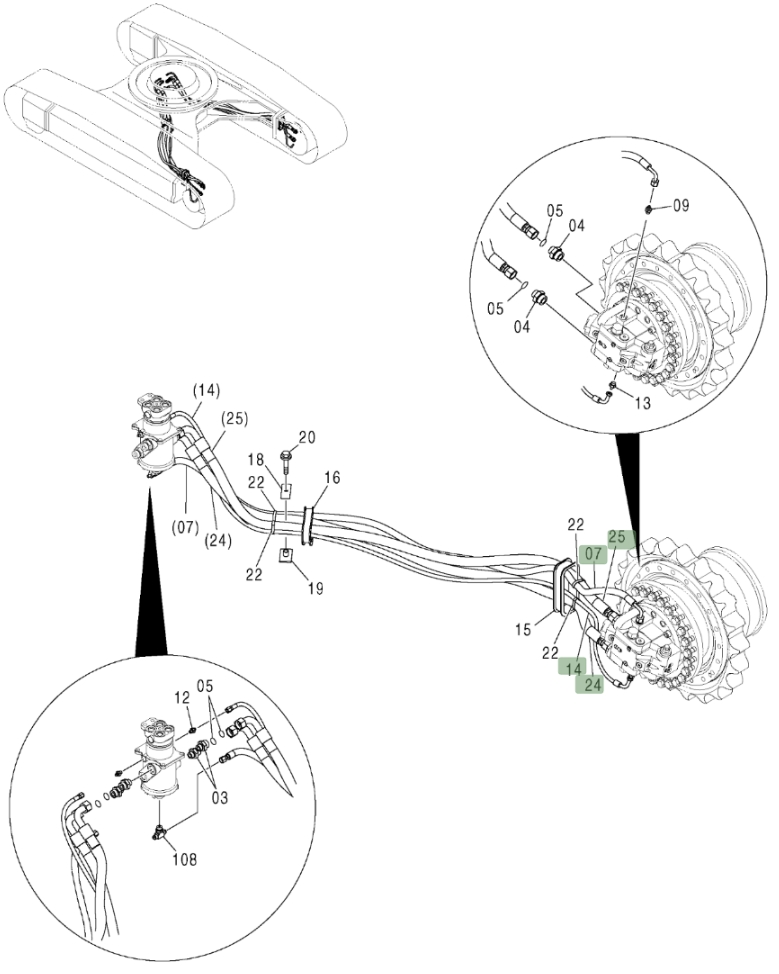

Installation diagram — Pipe No. 25

Locate Pipe No. 25 in the diagram, then confirm part number 4294424 before removing the hose.

Hitachi ZX370 installation diagram showing hydraulic hose 4294424 at Pipe No. 25 — **Hitachi ZX370**Part 4294424 · Pipe No. 25Open full-size diagram

Repair specifications

Part number: 4294424
Diagram pipe number: 25
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: DN25;4SP-16;32Mpa
Finished length: 2,250 mm
Working pressure: 32 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 11

9163647

Installation route: 回转接头~分配阀左上/右上

Length: 1,450 mm
Specification: DN25;4SH-16;38.8MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° light-series flangeOriginal Chinese: 90°法兰-轻型

View full repair specifications

Diagram Pipe No. 24

4294425

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,250 mm
Specification: DN25;4SP-16;32Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

4459641

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,550 mm
Specification: DN13;1SN-08;16MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 26

9235478

Installation route: 回转接头~分配阀左下

Length: 960 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 26A

4614852

Installation route: 回转接头~分配阀左下

Length: 960 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 7

4438098

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,400 mm
Specification: DN13;1SN-08;16MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 1

4292561

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,400 mm
Specification: DN25;4SP-16;32Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 14

4429283

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
