Individual hose record
4157679 Hose Repair Specifications
Excavator · Hitachi · EX1200-7 · Swing Motor
Finished length1,100 mm
Locate this hose

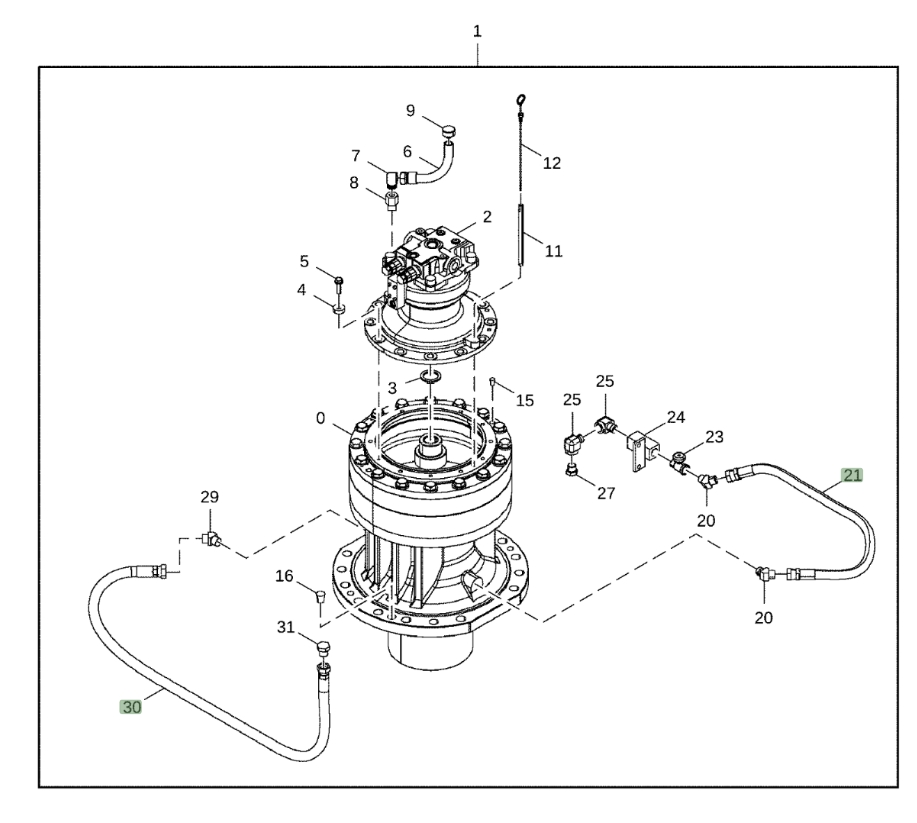

Installation diagram — Pipe No. 21
Locate Pipe No. 21 in the diagram, then confirm part number 4157679 before removing the hose.
Repair specifications
- Part number
- 4157679
- Diagram pipe number
- 21
- Installation route
- 回转马达~排油阀
- Hose specification
- DN19;4层纤维-12;3.5MPa
- Finished length
- 1,100 mm
- Working pressure
- 3.5 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 1
