Individual hose record
4252860 Hose Repair Specifications
Excavator · Hitachi · EX1200-7 · Swing Motor
Finished length1,550 mm
Locate this hose

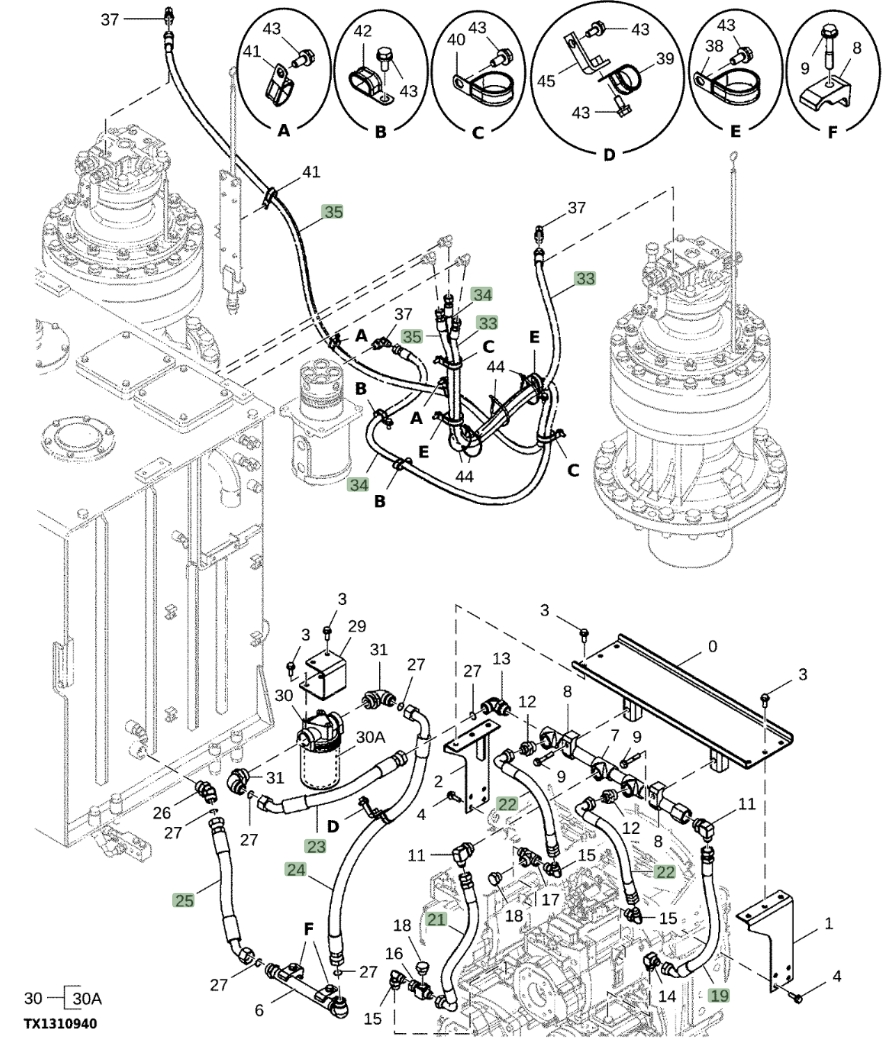

Installation diagram — Pipe No. 33
Locate Pipe No. 33 in the diagram, then confirm part number 4252860 before removing the hose.
Repair specifications
- Part number
- 4252860
- Diagram pipe number
- 33
- Installation route
- 回转马达(右)~回油铁管(液压油箱)
- Hose specification
- DN12;1SN-8;7MPa
- Finished length
- 1,550 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
