Individual hose record

KHJ2092 Hose Repair Specifications

Excavator · Case · CX210D LC 2PB · Attachments – Breaker

Finished length1,000 mm

Locate this hose

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number KHJ2092 before removing the hose.

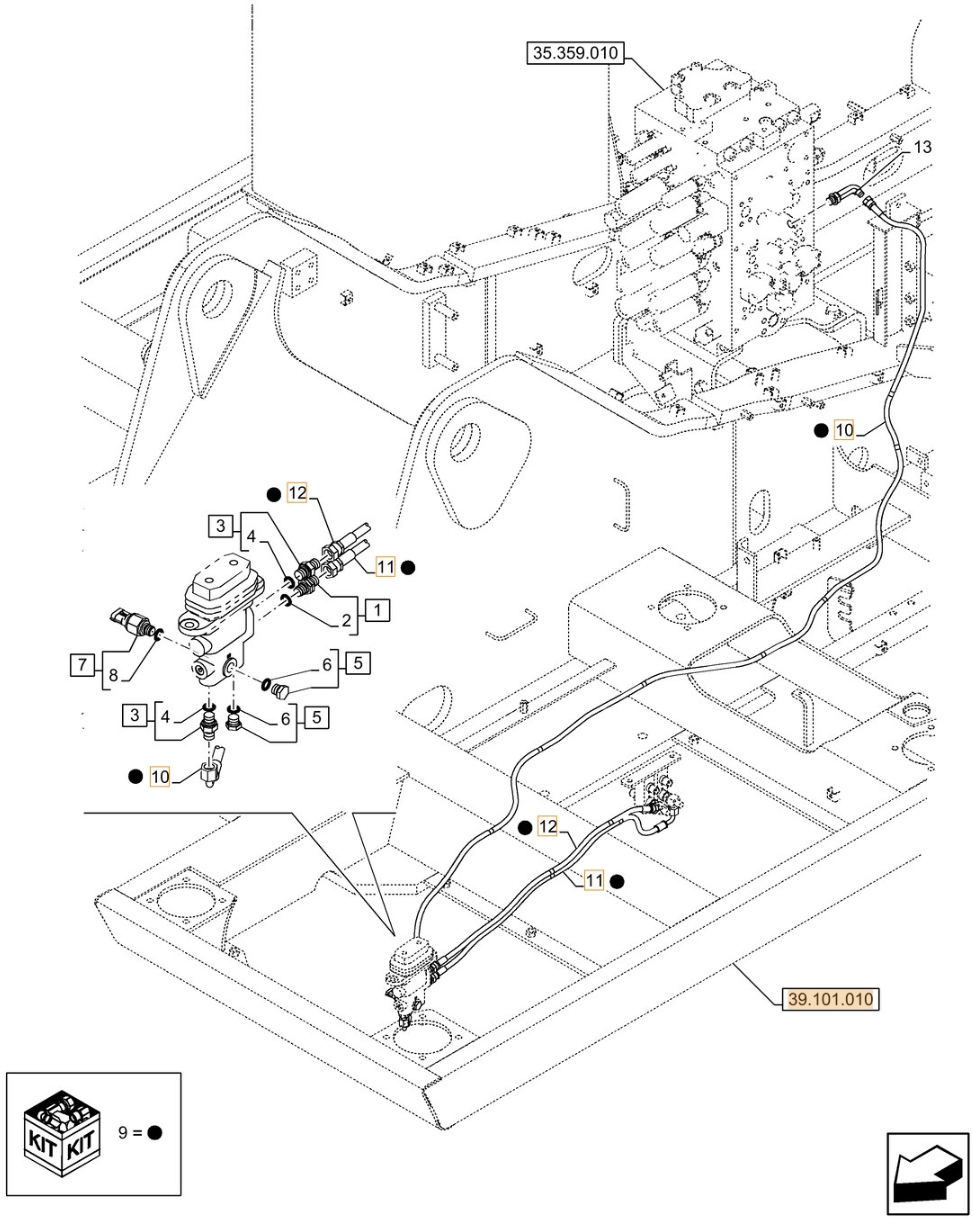

Case CX210D LC 2PB installation diagram showing hydraulic hose KHJ2092 at Pipe No. 11 — **Case CX210D LC 2PB**Part KHJ2092 · Pipe No. 11Open full-size diagram

Repair specifications

Part number: KHJ2092
Diagram pipe number: 11
Installation route: 破碎器踏板~进回油阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,000 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 18

KHJ13660

Installation route: 破碎器踏板~分配阀后

Length: 3,300 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. B29

KHJ2195

Installation route: 电磁阀(破碎器)~进回油阀

Length: 680 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. B27

KHJ2089

Installation route: 电磁阀(破碎器)~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. A22-B13-E45

KHJ2581

Installation route: 破碎器踏板~分配阀前

Length: 3,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 90°英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. 16

KHJ2089

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. 10

KHJ2581

Installation route: 破碎器踏板~分配阀后

Length: 3,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 90°英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. B18-D16

KHJ18960

Installation route: 破碎器踏板~控制阀(破碎器踏板)

Length: 3,400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 19

KHJ13660

Installation route: 破碎器踏板~分配阀前

Length: 3,300 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
