Individual hose record

KHJ13660 Hose Repair Specifications

Excavator · Case · CX210D LC 2PB · Attachments – Breaker

Finished length3,300 mm

Locate this hose

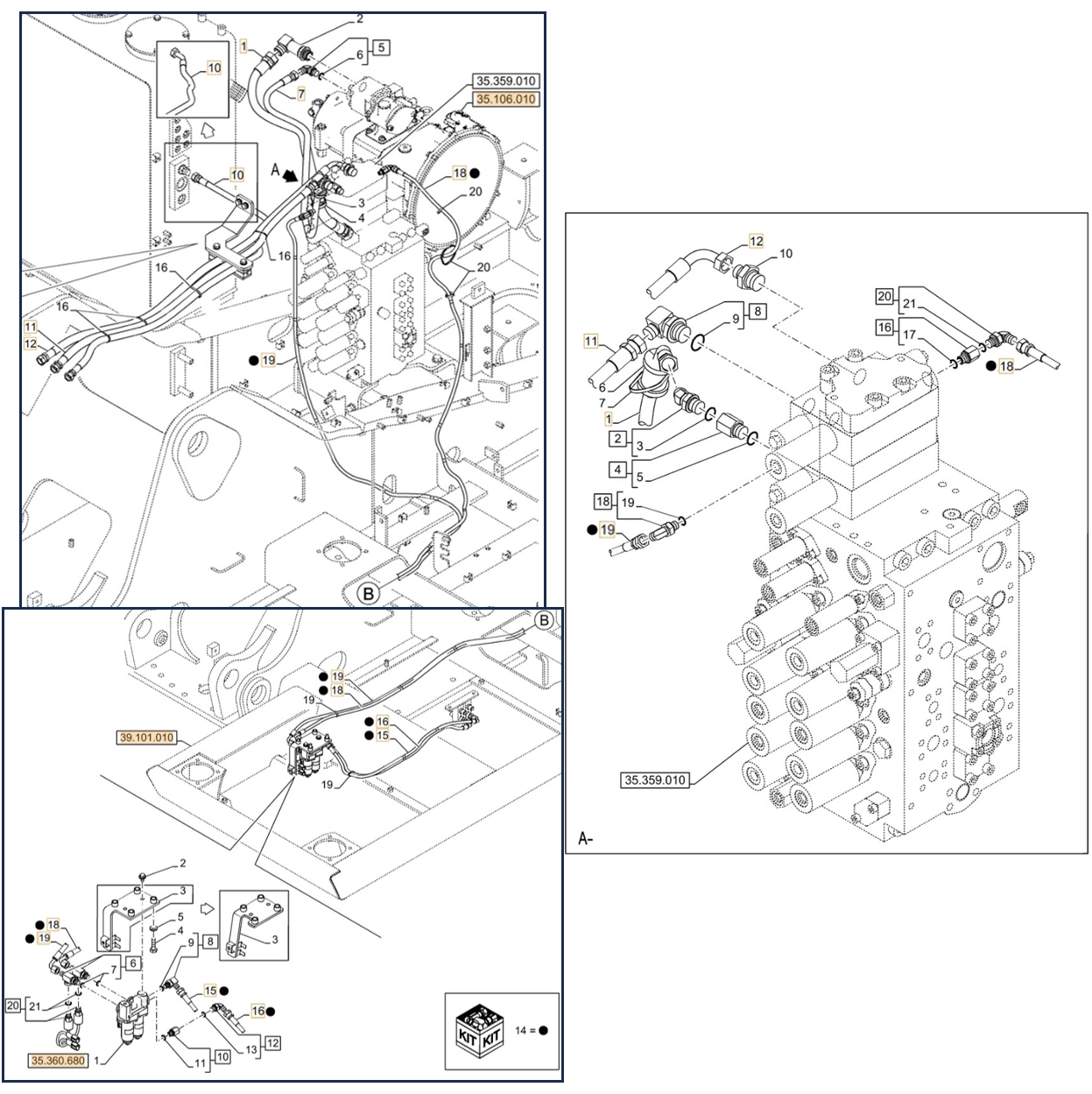

Installation diagram — Pipe No. 18

Locate Pipe No. 18 in the diagram, then confirm part number KHJ13660 before removing the hose.

Case CX210D LC 2PB installation diagram showing hydraulic hose KHJ13660 at Pipe No. 18 — **Case CX210D LC 2PB**Part KHJ13660 · Pipe No. 18Open full-size diagram

Repair specifications

Part number: KHJ13660
Diagram pipe number: 18
Installation route: 破碎器踏板~分配阀后
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,300 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
