Individual hose record
4306073 Hose Repair Specifications
Excavator · Hitachi · ZX600LC · Grease Lines
Finished length900 mm
Locate this hose

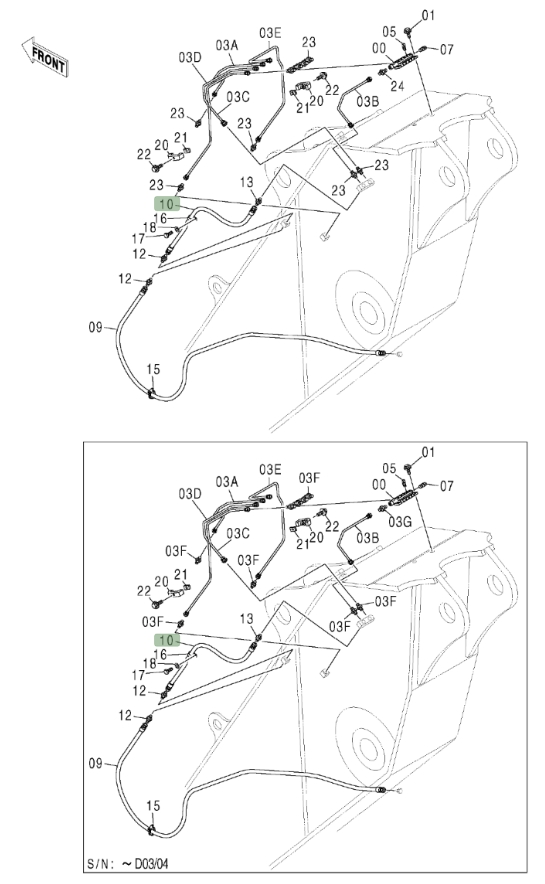

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number 4306073 before removing the hose.
Repair specifications
- Part number
- 4306073
- Diagram pipe number
- 10
- Installation route
- 小臂黄油管
- Hose specification
- DN10;2SN-6;27.5MPa
- Finished length
- 900 mm
- Working pressure
- 27.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
