Individual hose record
DS2092030 Hose Repair Specifications
Excavator · Doosan · DX150LC · Swivel Joint
Finished length2,350 mm
Locate this hose

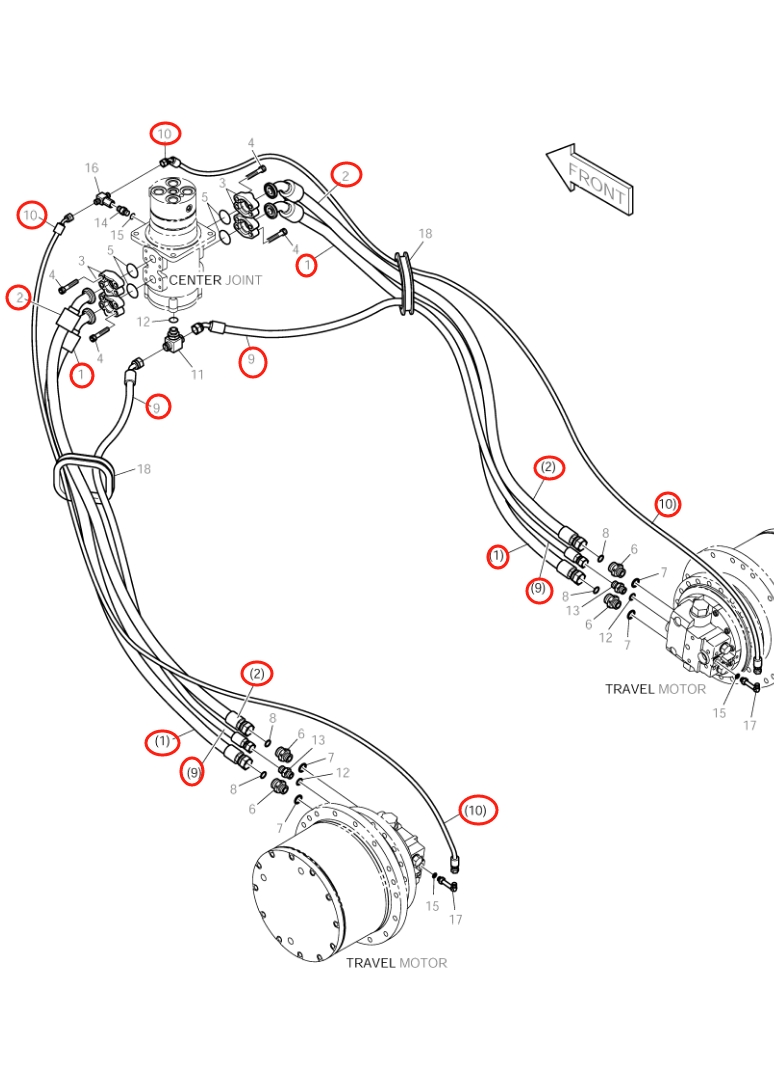

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number DS2092030 before removing the hose.
Repair specifications
- Part number
- DS2092030
- Diagram pipe number
- 10
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,350 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
- Quantity
- 2
Same system
