- Length
- 1,700 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Individual hose record
KHJ1144 Hose Repair Specifications
Excavator · Case · CX240 · Hydraulic Tank
Finished length1,800 mm
Locate this hose

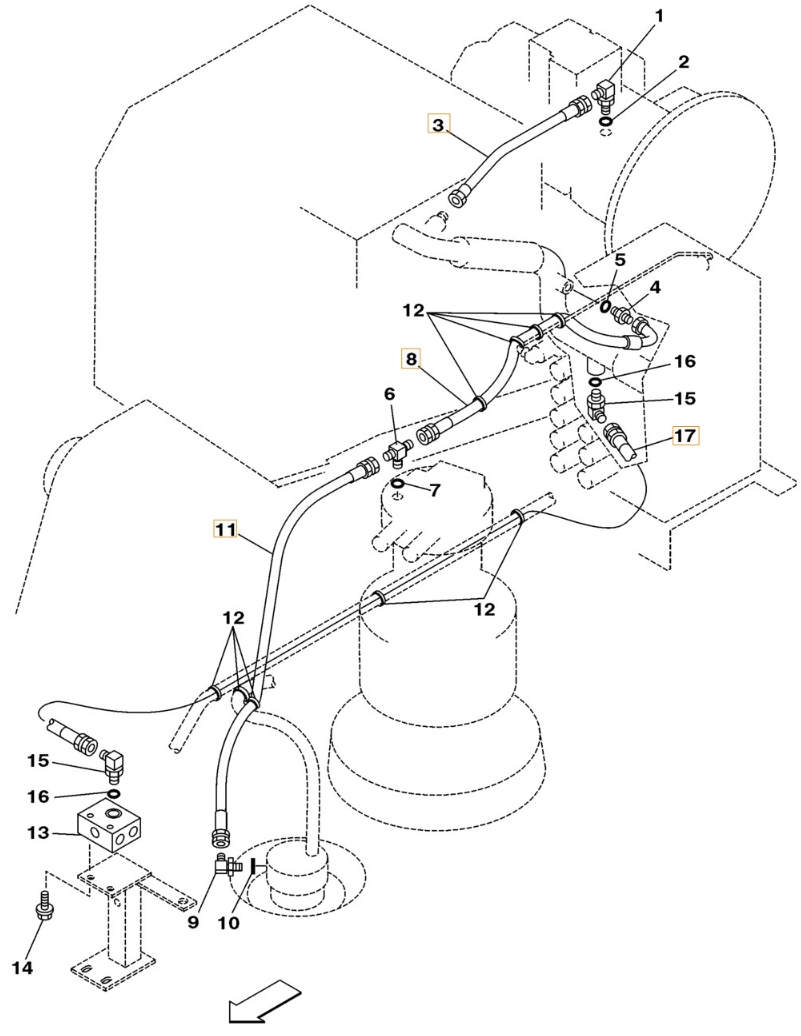

Installation diagram — Pipe No. 17
Locate Pipe No. 17 in the diagram, then confirm part number KHJ1144 before removing the hose.
Repair specifications
- Part number
- KHJ1144
- Diagram pipe number
- 17
- Installation route
- 回油铁管(液压油箱)~过渡阀块(油缸锁止阀)
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 1,800 mm
- Working pressure
- 16 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
