Individual hose record

4366752 Hose Repair Specifications

Excavator · Hitachi · EX450LC-5 · Attachments

Finished length300 mm

Locate this hose

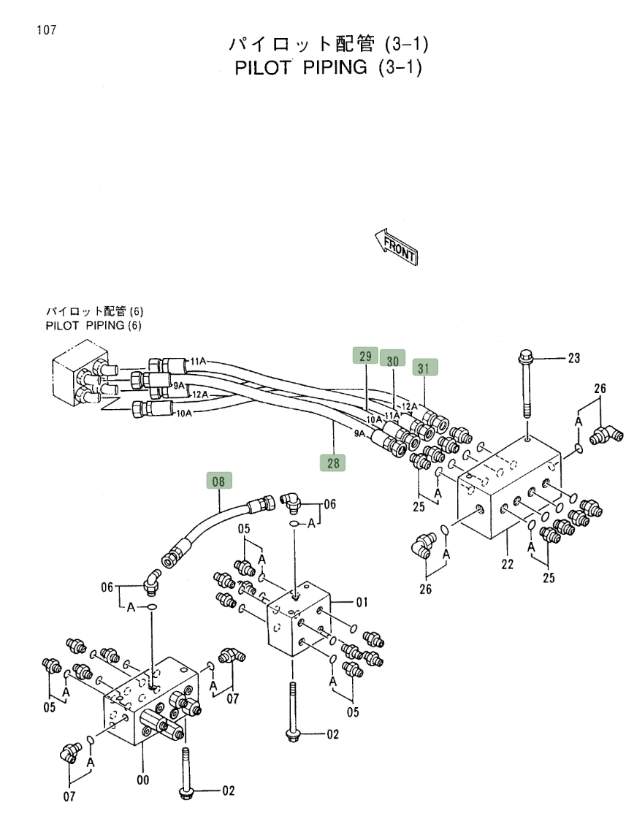

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 4366752 before removing the hose.

Hitachi EX450LC-5 installation diagram showing hydraulic hose 4366752 at Pipe No. 8 — Hitachi EX450LC-5Part 4366752 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 4366752
Diagram pipe number: 8
Installation route: 中转接头(手柄)~过渡阀块(手柄)
Hose specification: DN6;1SN-4;7Mpa
Finished length: 300 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 10

4290170

Installation route: 配重自卸踏板~过渡阀块(配重自卸)

Length: 440 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 30

4375838

Installation route: 中转接头(踏板)~过渡阀块(踏板)

Length: 600 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 11

4218085

Installation route: 配重自卸踏板~过渡阀块(配重自卸)

Length: 4,800 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 29

4375837

Installation route: 中转接头(踏板)~过渡阀块(踏板)

Length: 600 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 31

4375839

Installation route: 中转接头(踏板)~过渡阀块(踏板)

Length: 600 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 28

4375836

Installation route: 中转接头(踏板)~过渡阀块(踏板)

Length: 600 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
