4218085 Hose Repair Specifications

Excavator · Hitachi · EX450LC-5 · Attachments

Finished length4,800 mm

Locate this hose

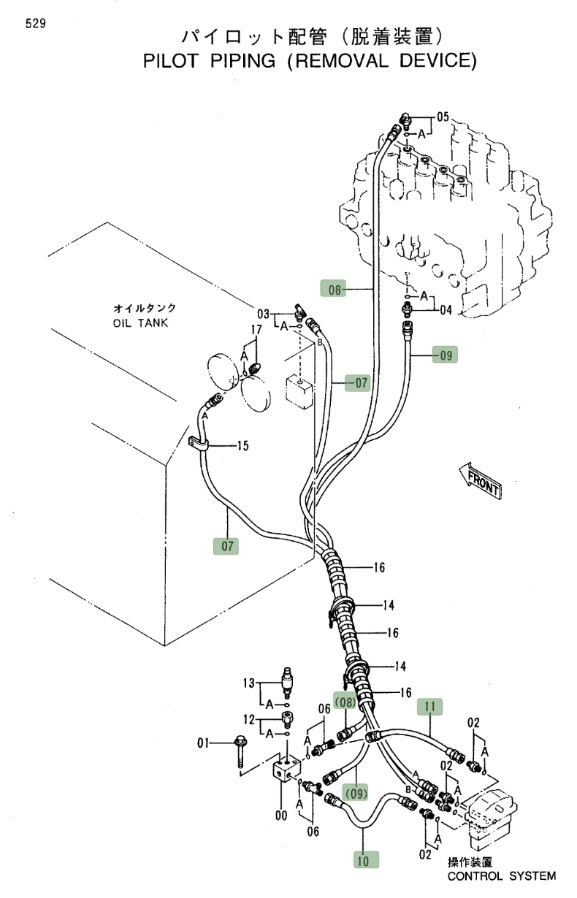

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number 4218085 before removing the hose.

Hitachi EX450LC-5 installation diagram showing hydraulic hose 4218085 at Pipe No. 11 — Hitachi EX450LC-5Part 4218085 · Pipe No. 11Open full-size diagram

Repair specifications

Part number: 4218085
Diagram pipe number: 11
Installation route: 配重自卸踏板~过渡阀块(配重自卸)
Hose specification: DN10;1SN-6;7Mpa
Finished length: 4,800 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
