4203028 Hose Repair Specifications

Excavator · Hitachi · EX150 · Control Lever

Finished length1,100 mm

Locate this hose

Installation diagram — Pipe No. 8

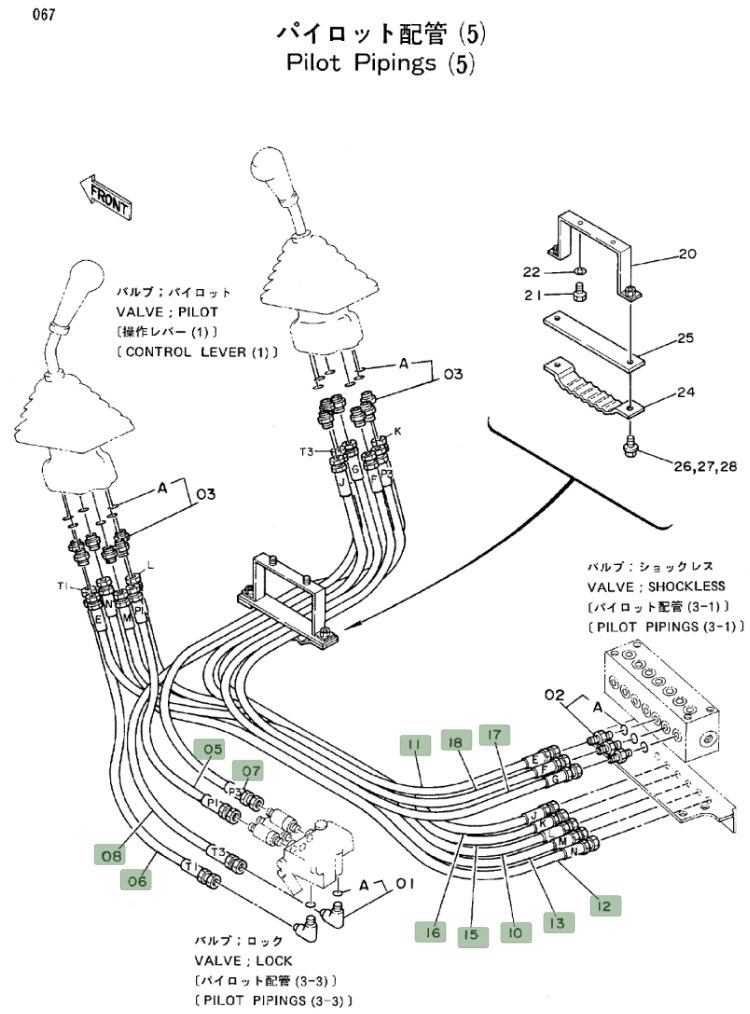

Locate Pipe No. 8 in the diagram, then confirm part number 4203028 before removing the hose.

Hitachi EX150 installation diagram showing hydraulic hose 4203028 at Pipe No. 8 — Hitachi EX150Part 4203028 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 4203028
Diagram pipe number: 8
Installation route: 右手柄~进回油阀
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 1,100 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
