Individual hose record

4213467 Hose Repair Specifications

Excavator · Hitachi · EX150 · Control Lever

Finished length750 mm

Locate this hose

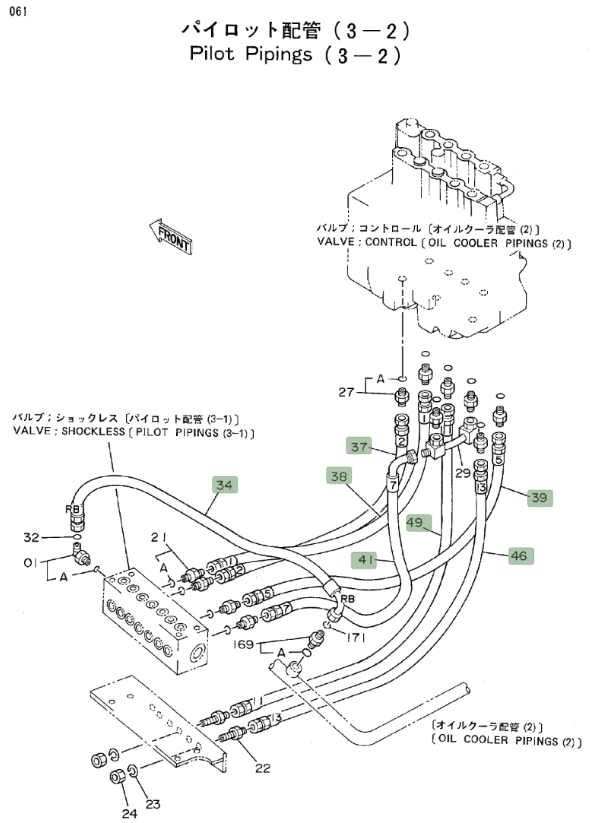

Installation diagram — Pipe No. 49

Locate Pipe No. 49 in the diagram, then confirm part number 4213467 before removing the hose.

Hitachi EX150 installation diagram showing hydraulic hose 4213467 at Pipe No. 49 — Hitachi EX150Part 4213467 · Pipe No. 49Open full-size diagram

Repair specifications

Part number: 4213467
Diagram pipe number: 49
Installation route: 接线板(中转接头)~分配阀下
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 750 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥
Quantity: 1
