Individual hose record

KRJ4970 Hose Repair Specifications

Excavator · Case · CX700 · Control Lever

Finished length3,800 mm

Locate this hose

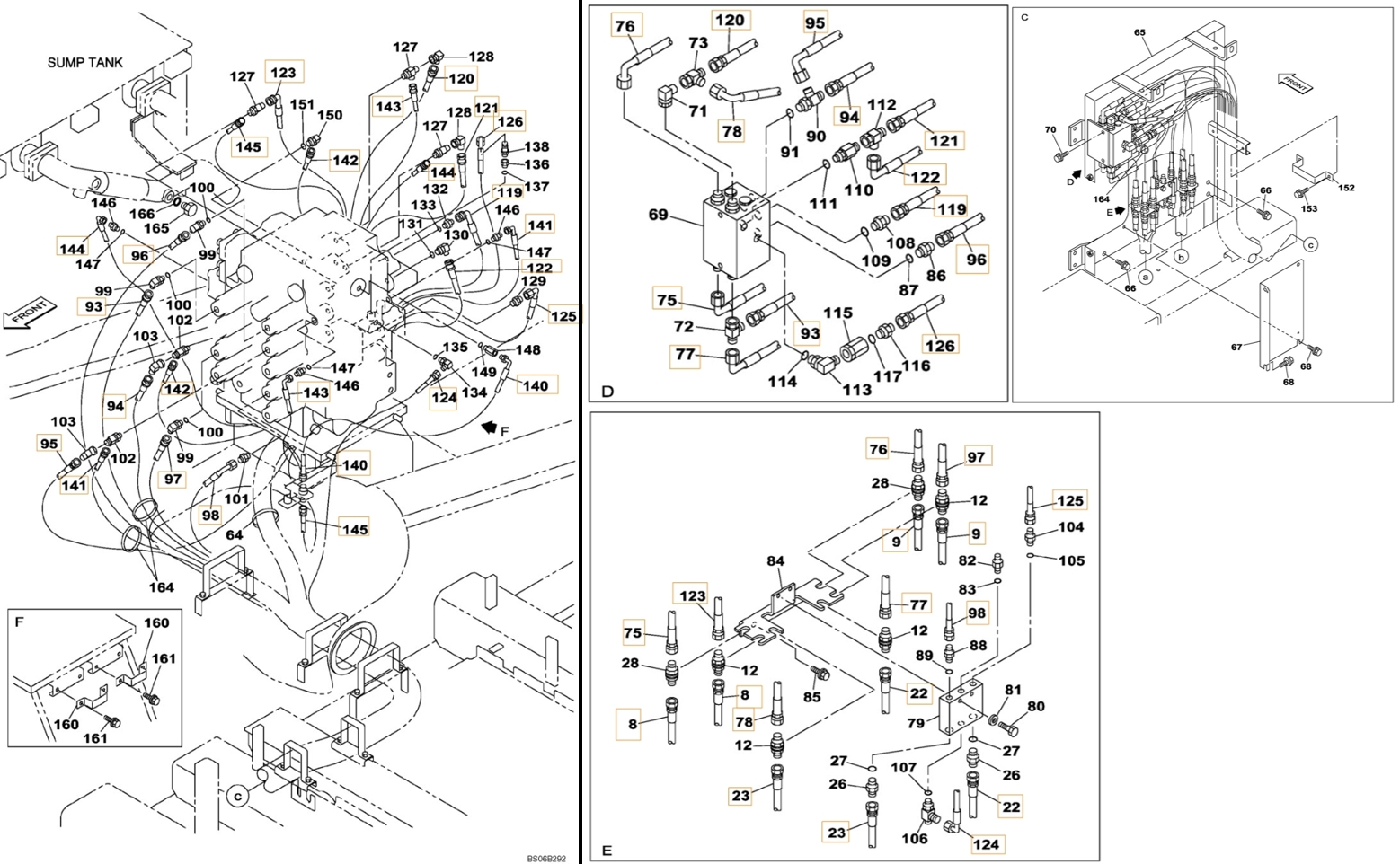

Installation diagram — Pipe No. 95

Locate Pipe No. 95 in the diagram, then confirm part number KRJ4970 before removing the hose.

Case CX700 installation diagram showing hydraulic hose KRJ4970 at Pipe No. 95 — **Case CX700**Part KRJ4970 · Pipe No. 95Open full-size diagram

Repair specifications

Part number: KRJ4970
Diagram pipe number: 95
Installation route: 缓冲阀(手柄)~分配阀前右
Hose specification: DN10;1SN-06;18MPa
Finished length: 3,800 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
