Individual hose record

4265833 Hose Repair Specifications

Excavator · Hitachi · ZX120 · Attachments – Breaker

Finished length1,300 mm

Locate this hose

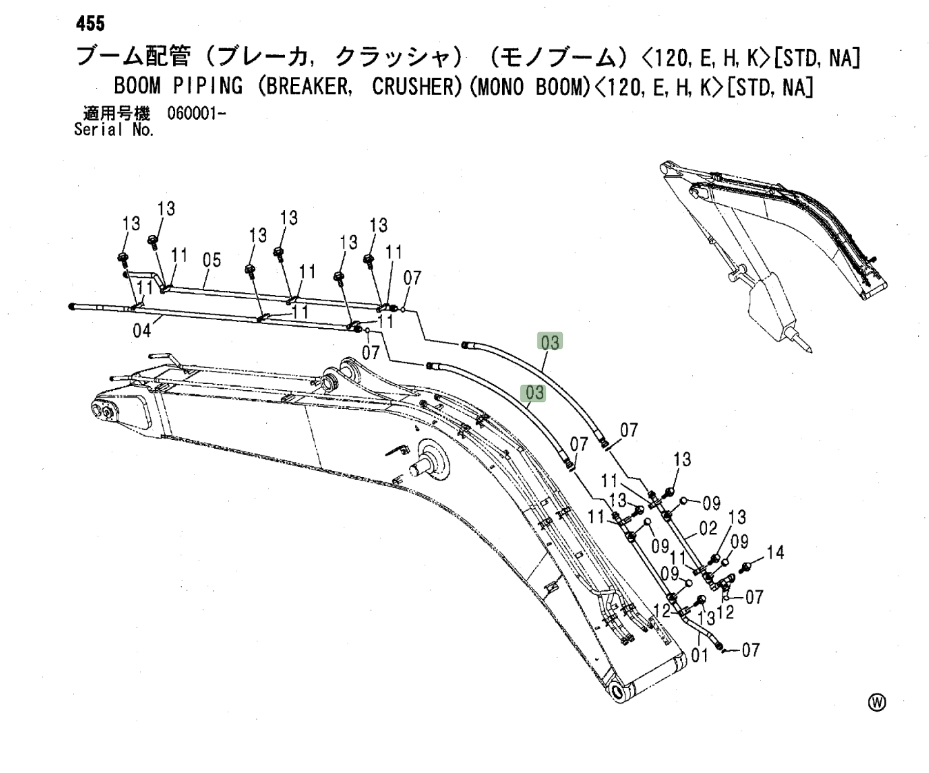

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number 4265833 before removing the hose.

Part number: 4265833
Diagram pipe number: 3
Installation route: 大臂(前段)~大臂(后段)
Hose specification: DN19;4SP-12;31Mpa
Finished length: 1,300 mm
Working pressure: 31 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 18

Installation route: 过渡阀块(破碎器)~回油铁管(分配阀)

Length: 700 mm
Specification: DN19;1SN-12;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 4

Installation route: 大臂(前段)~大臂(后段)

Length: 1,300 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 3

Installation route: 大臂(前段)~大臂(后段)

Length: 1,300 mm
Specification: DN19;4SP-12;31Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 11

Installation route: 大臂(后段)~卸压安全阀(破碎器)

Length: 800 mm
Specification: DN19;4SP-12;38Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 18

Installation route: 过渡阀块(破碎器)~回油铁管(分配阀)

Length: 700 mm
Specification: DN25;1SN-16;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
