- Length
- 990 mm
- Specification
- DN13;1SN-08;16MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Individual hose record
DS2012150 Hose Repair Specifications
Excavator · Doosan · DX160LC-3 · Hydraulic Pump
Finished length1,080 mm
Locate this hose

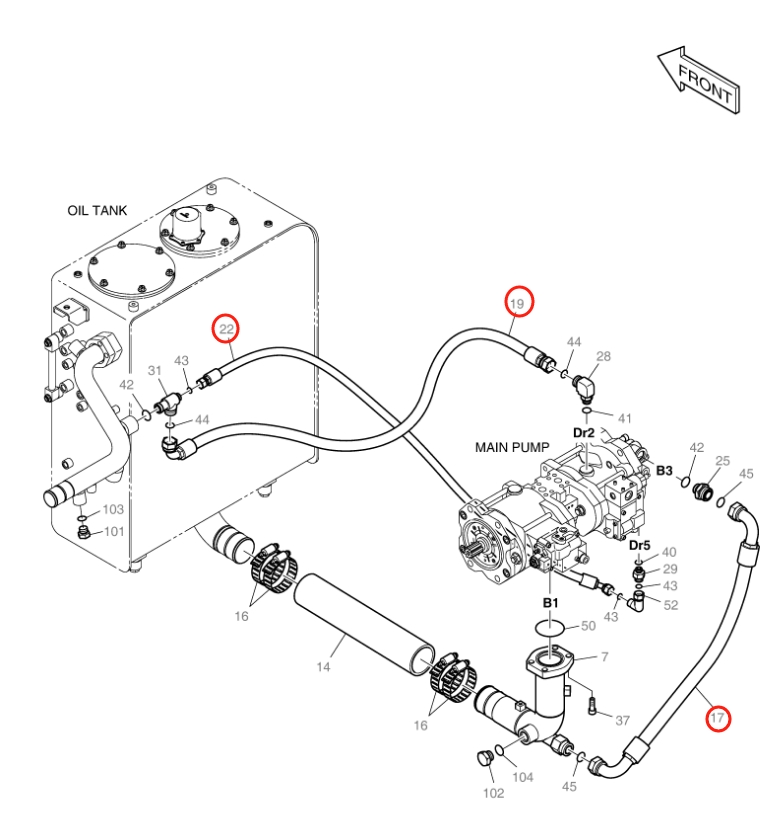

Installation diagram — Pipe No. 22
Locate Pipe No. 22 in the diagram, then confirm part number DS2012150 before removing the hose.
Repair specifications
- Part number
- DS2012150
- Diagram pipe number
- 22
- Installation route
- 液压泵Dr5口~回油铁管(液压油箱)
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 1,080 mm
- Working pressure
- 16 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Quantity
- 1
