Individual hose record

KBV17880 Hose Repair Specifications

Excavator · Case · CX290B · Attachments – Breaker

Finished length2,400 mm

Locate this hose

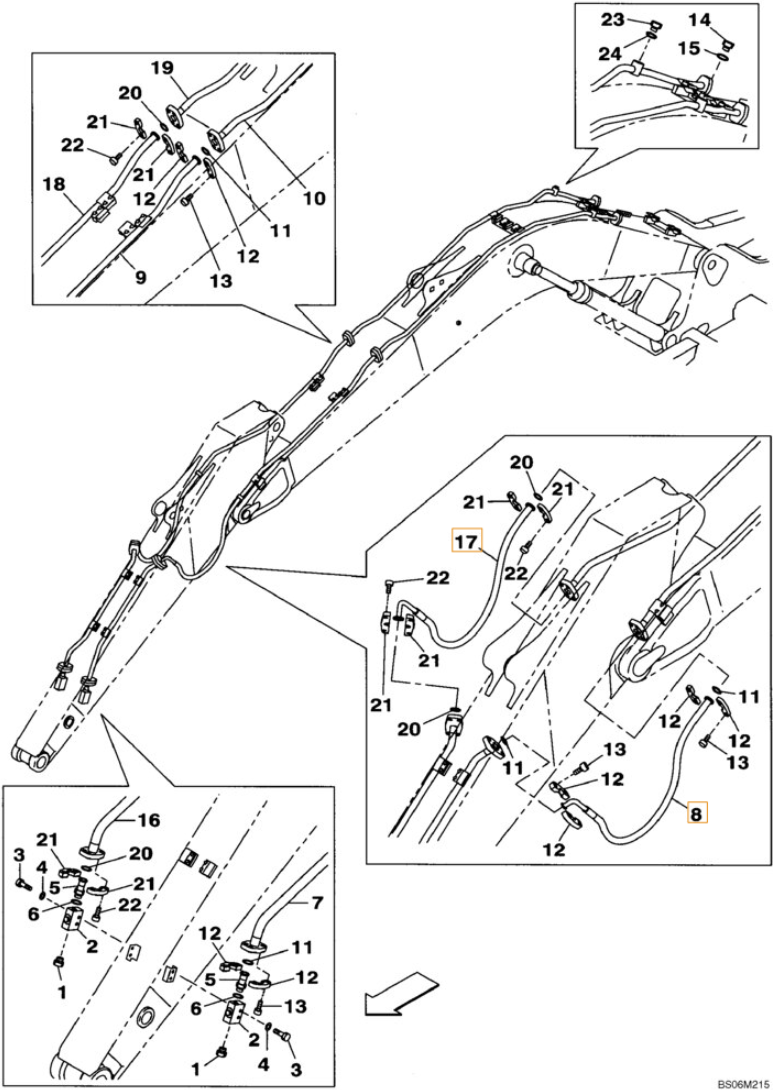

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number KBV17880 before removing the hose.

Case CX290B installation diagram showing hydraulic hose KBV17880 at Pipe No. 8 — **Case CX290B**Part KBV17880 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: KBV17880
Diagram pipe number: 8
Installation route: 小臂破碎器截止阀左
Hose specification: DN32;6SH-20;42MPa
Finished length: 2,400 mm
Working pressure: 42 MPa
Left fitting: 法兰(分体式)-重型
Right fitting: 90°法兰(分体式)-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. E84-F84

KHJ2086

Installation route: 进回油阀~电磁阀(破碎器踏板)

Length: 700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. F71

KHJ2194

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90°英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. F68

KHJ2244

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Length: 600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 84

KHJ2180

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Length: 500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 32

KHJ2088

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 17

KBV15980

Installation route: 小臂破碎器截止阀右

Length: 1,900 mm
Specification: DN32;6SH-20;42MPa
Left fitting: 法兰(分体式)-重型
Right fitting: 90°法兰(分体式)-重型

View full repair specifications

Diagram Pipe No. 82

KHJ2036

Installation route: 破碎器踏板~进回油阀

Length: 750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 46

KHJ2050

Installation route: 破碎器踏板~进回油阀

Length: 1,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications
