Individual hose record

KRV19720 Hose Repair Specifications

Excavator · Case · CX130D · Boom Assembly

Finished length850 mm

Locate this hose

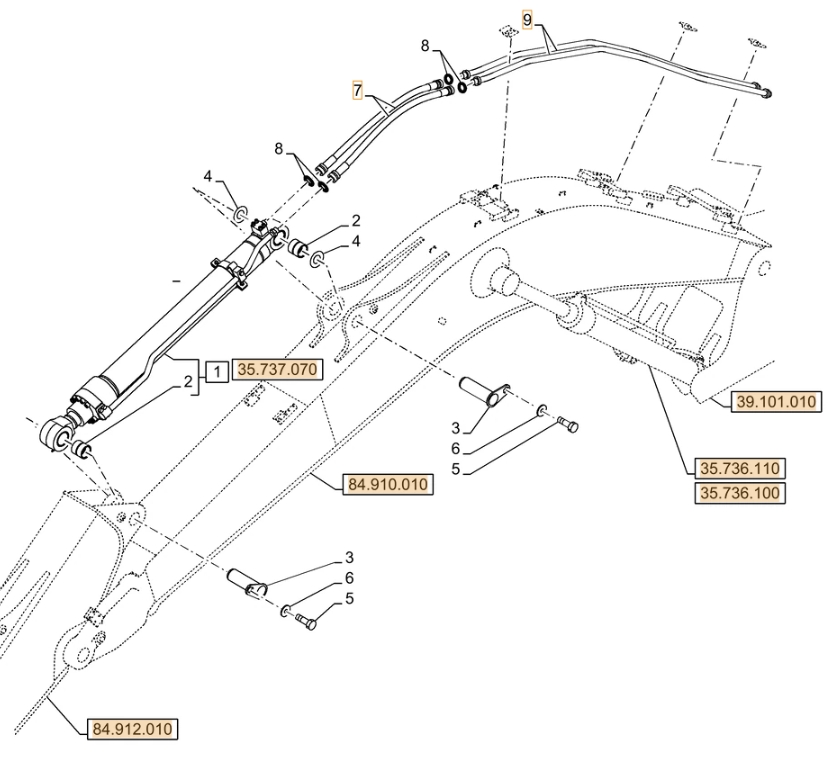

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number KRV19720 before removing the hose.

Part number: KRV19720
Diagram pipe number: 7
Installation route: 小臂油缸
Hose specification: DN19;4SP-12;35MPa
Finished length: 850 mm
Working pressure: 35 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 英制外螺纹(美制内螺纹)平面密封
Quantity: 2

Same system

Diagram Pipe No. 11

Installation route: 大臂油缸左1

Length: 750 mm
Specification: DN16;4SP-10;38MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 英制外螺纹平面密封

Diagram Pipe No. 11

Installation route: 大臂油缸左4

Length: 750 mm
Specification: DN16;4SP-10;38MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 英制外螺纹平面密封
