Individual hose record

DS2055830 Hose Repair Specifications

Excavator · Doosan · DX80R · Attachments

Finished length1,260 mm

Locate this hose

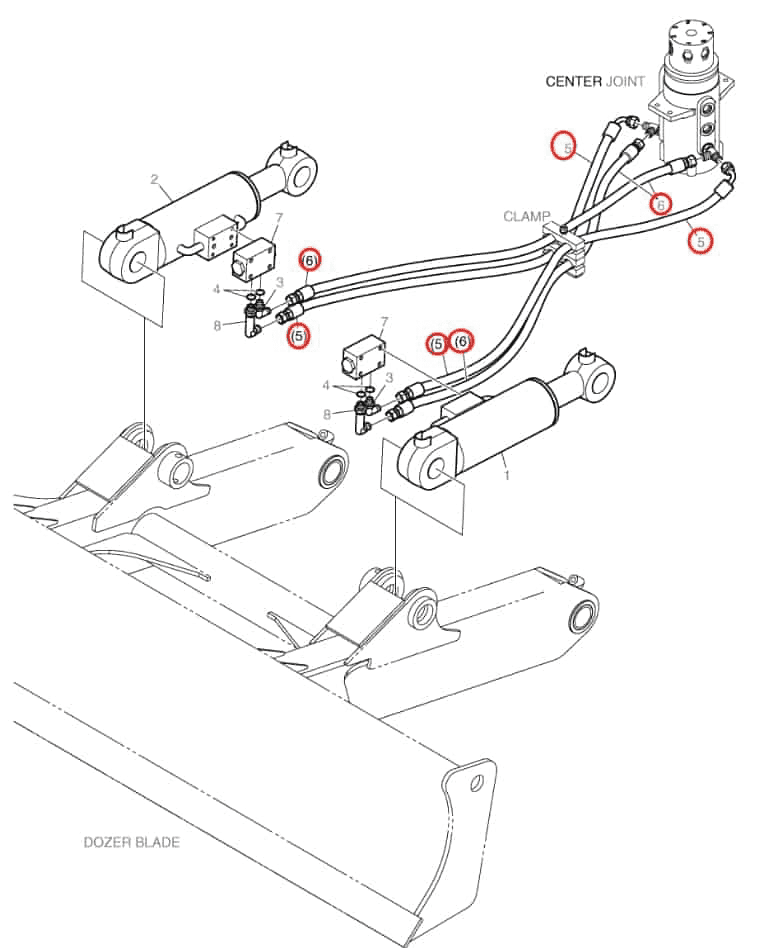

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number DS2055830 before removing the hose.

Doosan DX80R installation diagram showing hydraulic hose DS2055830 at Pipe No. 5 — **Doosan DX80R**Part DS2055830 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: DS2055830
Diagram pipe number: 5
Installation route: 回转接头~推土铲油缸
Hose specification: DN10;4SP-06;44.5MPa
Finished length: 1,260 mm
Working pressure: 44.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 50

DS20531211

Installation route: 散热器上~铁管(散热器)

Length: 920 mm
Specification: DN25;1SN-16;8.8MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 90

DS2094363

Installation route: 减压阀~铁管(液压泵旁)

Length: 440 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 5

DS2093651

Installation route: 大臂(附加装置)~分配阀B10口

Length: 2,930 mm
Specification: DN10;4SP-06;44.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 46

DS2094189

Installation route: 推土铲手柄2口~分配阀PA4口

Length: 2,575 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 47

DS2092030

Installation route: 推土铲手柄1口~分配阀PB4口

Length: 2,350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 90

DS2094377

Installation route: 减压阀~铁管(液压泵旁)

Length: 410 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 33

DS2093249

Installation route: 分节油缸踏板1口~分配阀PA10口

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 57

DS2094353

Installation route: 大臂摆动踏板2口~电磁阀

Length: 3,330 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications
