DS2093101 Hose Repair Specifications

Excavator · Doosan · DX140LC · Attachments

Finished length1,530 mm

Locate this hose

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number DS2093101 before removing the hose.

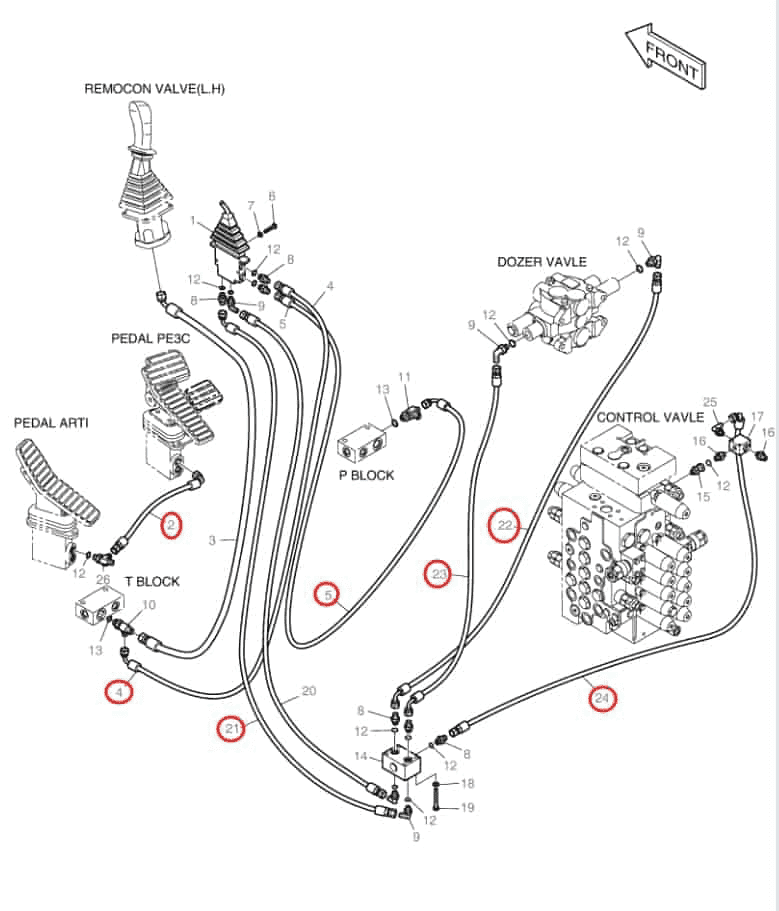

Doosan DX140LC installation diagram showing hydraulic hose DS2093101 at Pipe No. 5 — **Doosan DX140LC**Part DS2093101 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: DS2093101
Diagram pipe number: 5
Installation route: 推土铲手柄~进油阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,530 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
