DS2011292 Hose Repair Specifications

Excavator · Doosan · DX140LC · Attachments

Finished length1,250 mm

Locate this hose

Installation diagram — Pipe No. 52

Locate Pipe No. 52 in the diagram, then confirm part number DS2011292 before removing the hose.

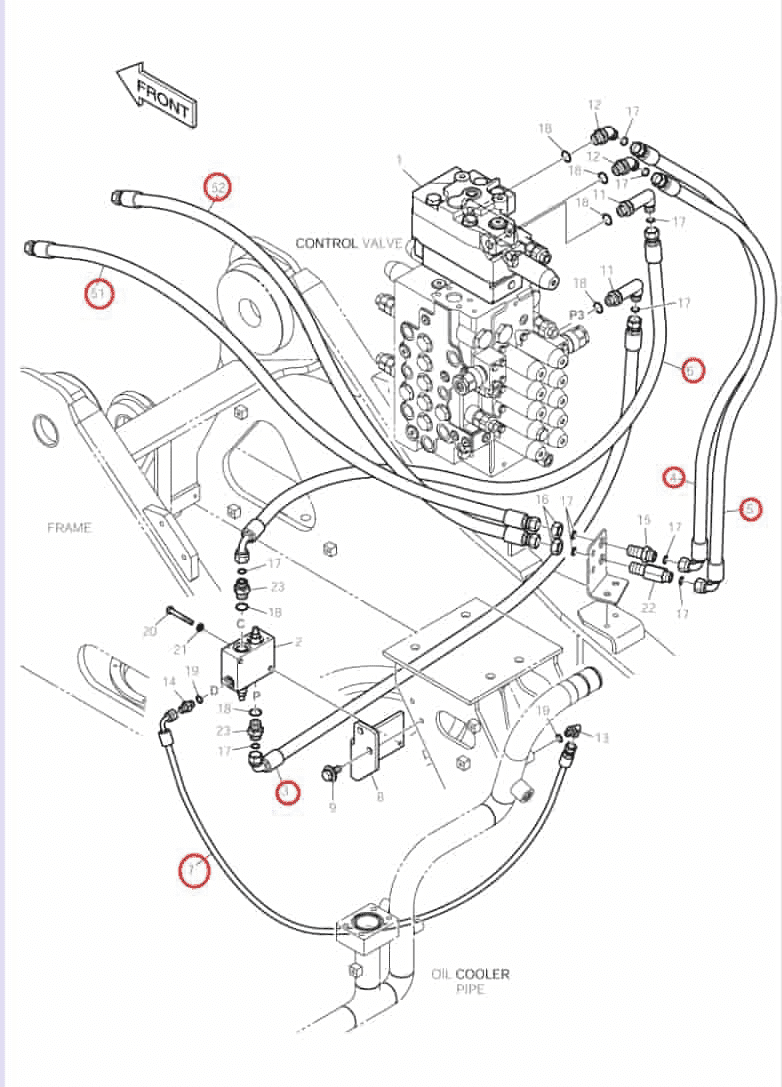

Doosan DX140LC installation diagram showing hydraulic hose DS2011292 at Pipe No. 52 — **Doosan DX140LC**Part DS2011292 · Pipe No. 52Open full-size diagram

Repair specifications

Part number: DS2011292
Diagram pipe number: 52
Installation route: 大臂(附加装置)~接线板(大臂下)
Hose specification: DN13;4SP-08;41.5MPa
Finished length: 1,250 mm
Working pressure: 41.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1
