Individual hose record
4343411 Hose Repair Specifications
Excavator · Hitachi · EX550LC · Pedal
Finished length2,200 mm
Locate this hose

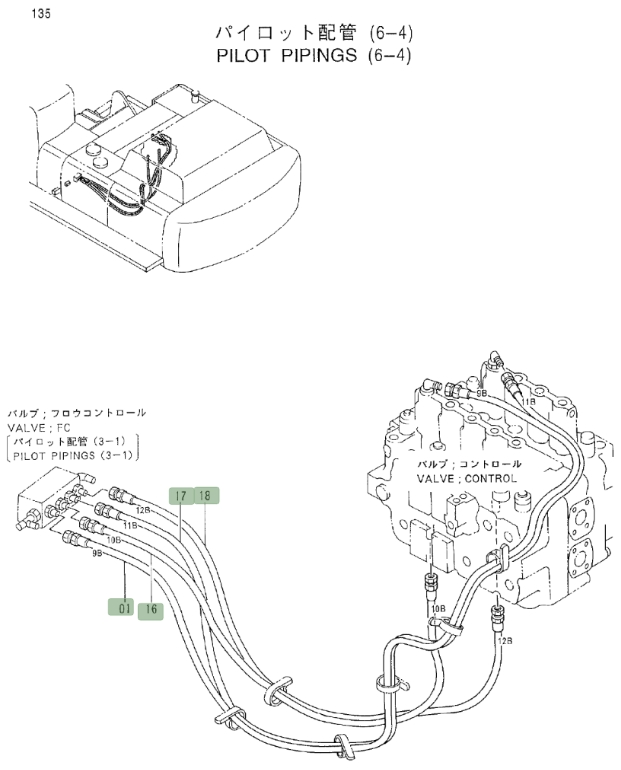

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 4343411 before removing the hose.
Repair specifications
- Part number
- 4343411
- Diagram pipe number
- 16
- Installation route
- 中转接头(踏板)~分配阀下左
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 2,200 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
