Individual hose record
KHJ2318 Hose Repair Specifications
Excavator · Case · CX500D LC ME · Supply and Return Valve
Finished length1,400 mm
Locate this hose

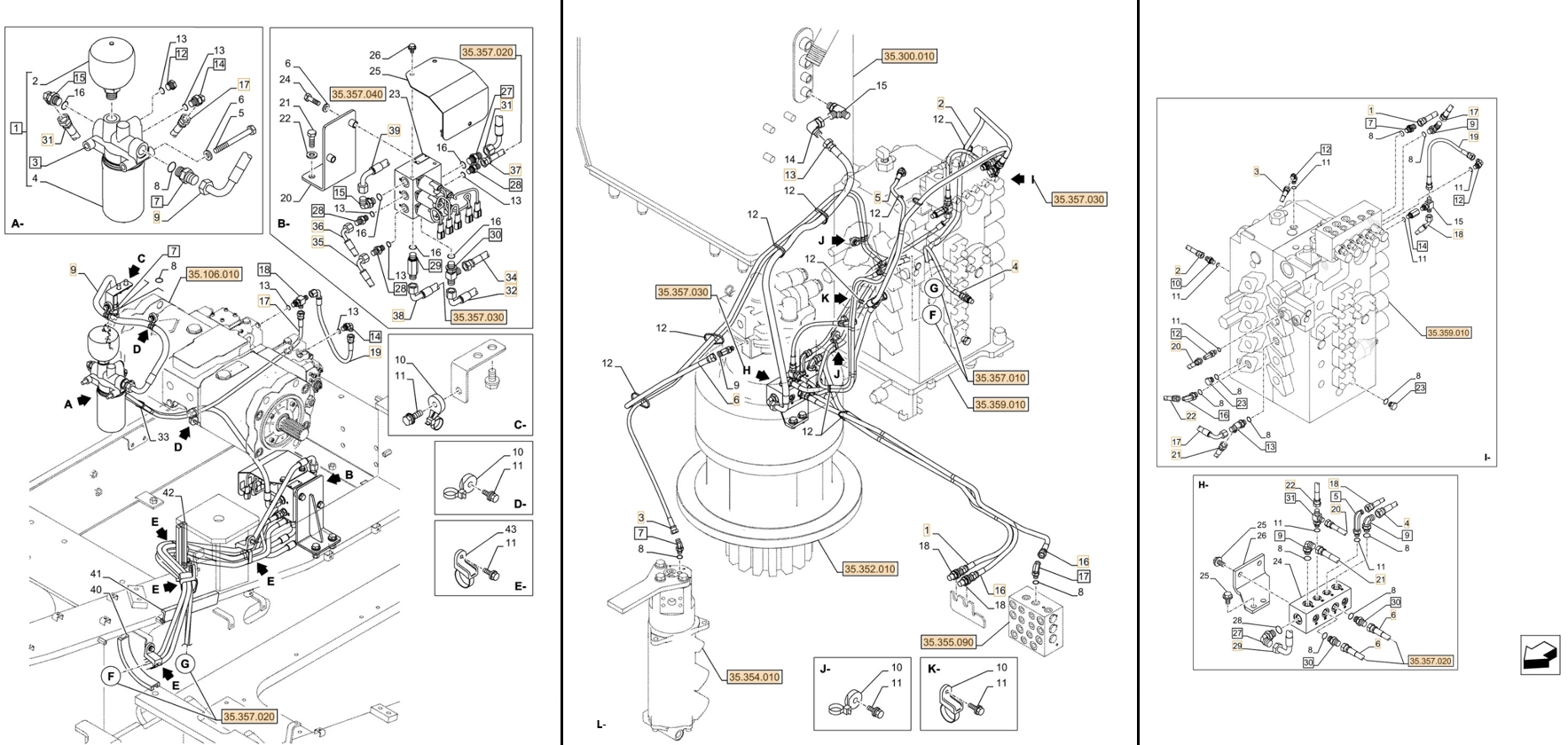

Installation diagram — Pipe No. H6-L16
Locate Pipe No. H6-L16 in the diagram, then confirm part number KHJ2318 before removing the hose.
Repair specifications
- Part number
- KHJ2318
- Diagram pipe number
- H6-L16
- Installation route
- 接头(进回油阀)~回转马达过渡阀块
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,400 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
