Individual hose record
4671343 Hose Repair Specifications
Excavator · Hitachi · ZX345USLC-6N · Attachments – Breaker
Finished length1,500 mm
Locate this hose

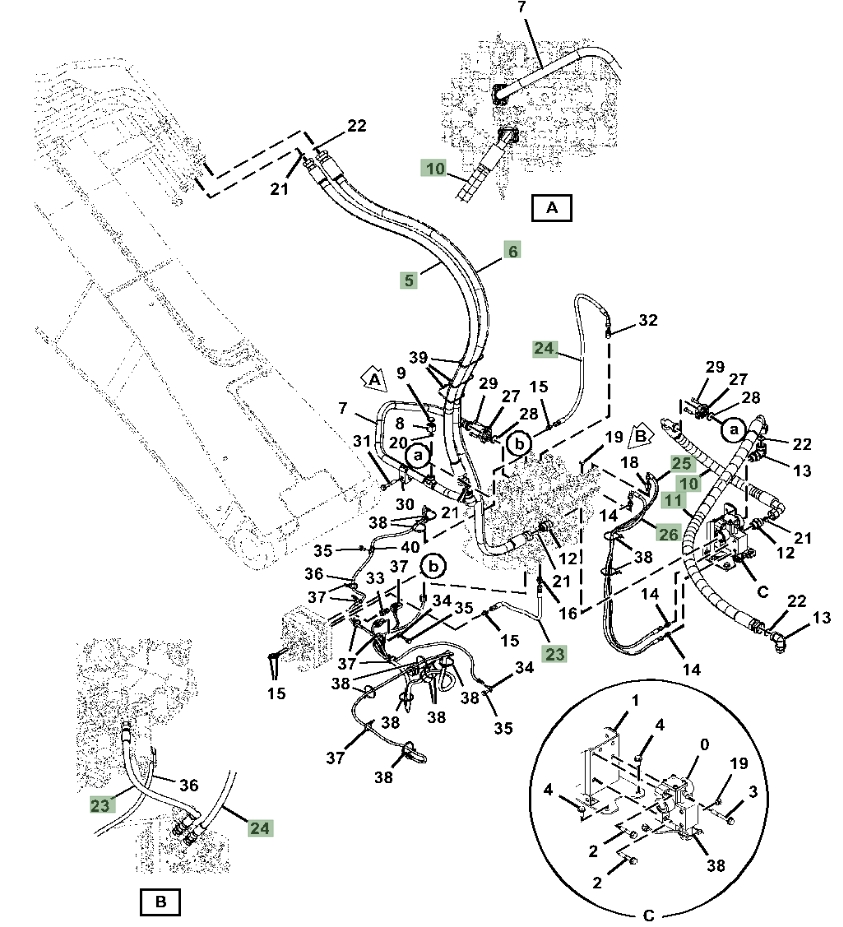

Installation diagram — Pipe No. 26
Locate Pipe No. 26 in the diagram, then confirm part number 4671343 before removing the hose.
Repair specifications
- Part number
- 4671343
- Diagram pipe number
- 26
- Installation route
- 电磁阀~过渡阀块(破碎器)
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 1,500 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
