Individual hose record

KNJ11480 Hose Repair Specifications

Excavator · Case · CX130C-8 · Hydraulic Pump

Finished length980 mm

Locate this hose

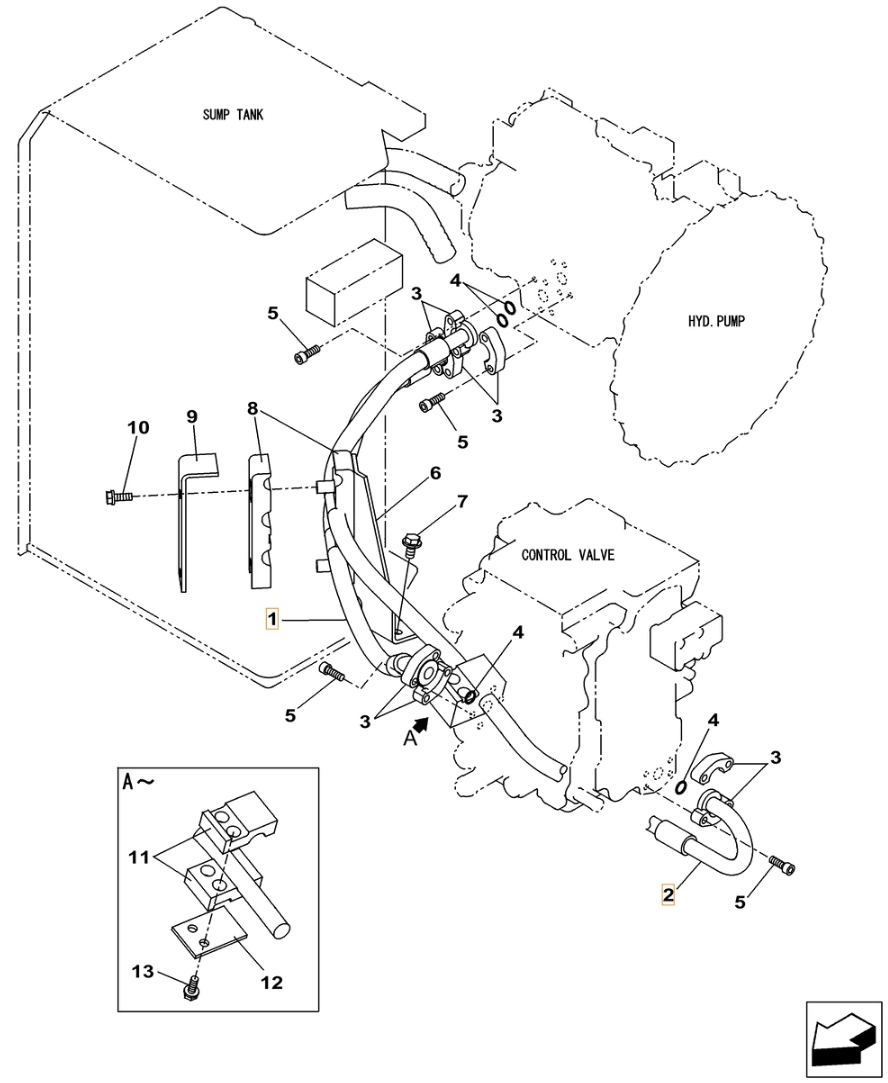

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number KNJ11480 before removing the hose.

Case CX130C-8 installation diagram showing hydraulic hose KNJ11480 at Pipe No. 1 — Case CX130C-8Part KNJ11480 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: KNJ11480
Diagram pipe number: 1
Installation route: 液压泵~分配阀(进油)
Hose specification: DN16;4SP-10;38MPa
Finished length: 980 mm
Working pressure: 38 MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: 45°法兰-轻型
Quantity: 1
