Individual hose record

4405562 Hose Repair Specifications

Excavator · Hitachi · EX330LC-5 · Hydraulic Tank

Finished length800 mm

Locate this hose

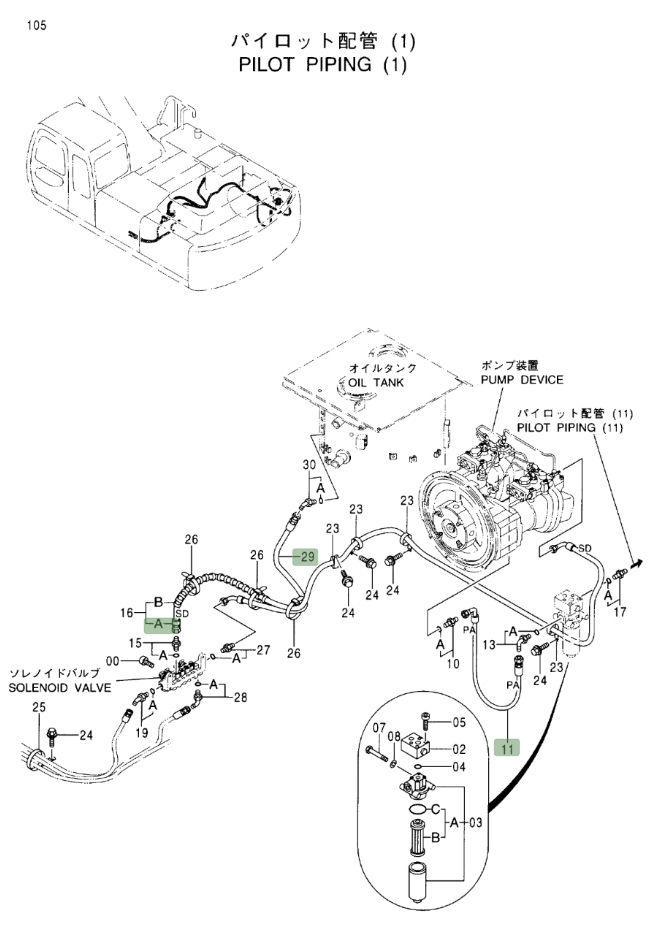

Installation diagram — Pipe No. 29

Locate Pipe No. 29 in the diagram, then confirm part number 4405562 before removing the hose.

Hitachi EX330LC-5 installation diagram showing hydraulic hose 4405562 at Pipe No. 29 — Hitachi EX330LC-5Part 4405562 · Pipe No. 29Open full-size diagram

Repair specifications

Part number: 4405562
Diagram pipe number: 29
Installation route: 液压油箱~电磁阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 800 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1
