4651807 Hose Repair Specifications

Excavator · Hitachi · ZX450LC-3 · Swivel Joint

Finished length1,650 mm

Locate this hose

Installation diagram — Pipe No. 0

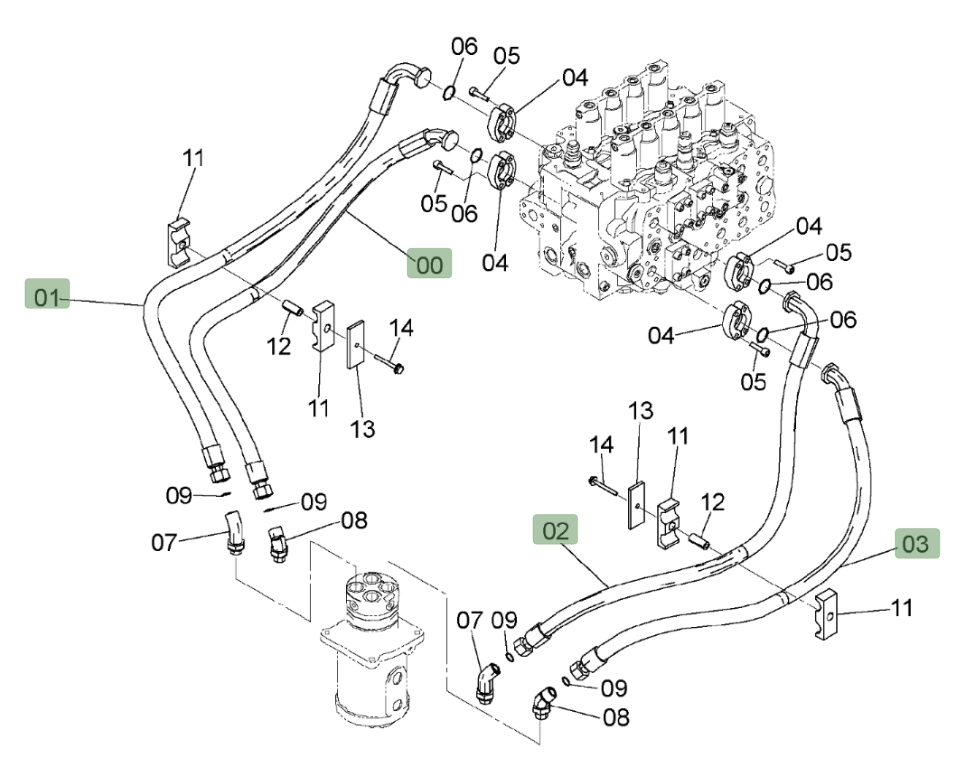

Locate Pipe No. 0 in the diagram, then confirm part number 4651807 before removing the hose.

Hitachi ZX450LC-3 installation diagram showing hydraulic hose 4651807 at Pipe No. 0 — **Hitachi ZX450LC-3**Part 4651807 · Pipe No. 0Open full-size diagram

Repair specifications

Part number: 4651807
Diagram pipe number: 0
Installation route: 回转接头~分配阀右下
Hose specification: DN25;4SH-16;38.8MPa
Finished length: 1,650 mm
Working pressure: 38.8 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45° heavy-series flangeOriginal Chinese: 45°法兰-重型
Quantity: 1
