KBJ11820 Hose Repair Specifications

Excavator · Case · CX300B · Attachments – Breaker

Finished length760 mm

Locate this hose

Installation diagram — Pipe No. 48

Locate Pipe No. 48 in the diagram, then confirm part number KBJ11820 before removing the hose.

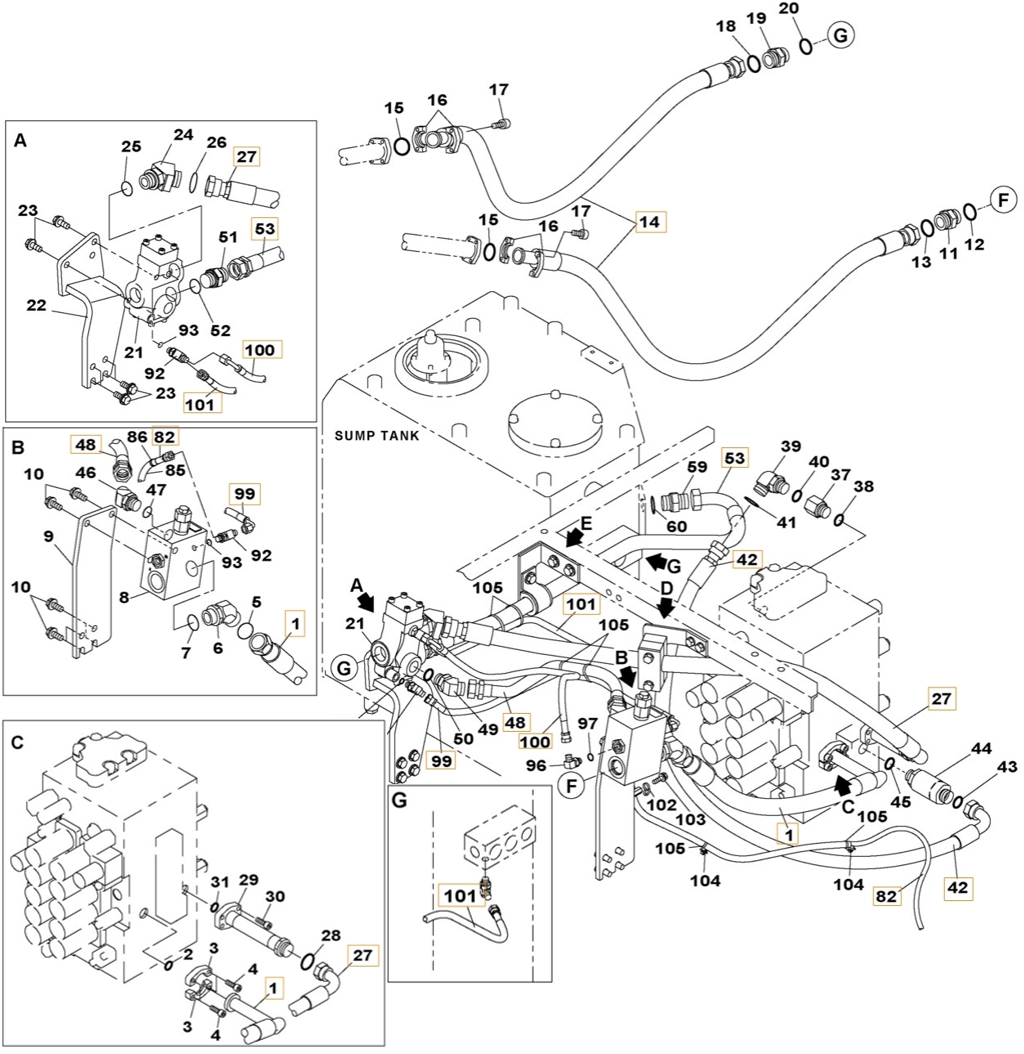

Case CX300B installation diagram showing hydraulic hose KBJ11820 at Pipe No. 48 — **Case CX300B**Part KBJ11820 · Pipe No. 48Open full-size diagram

Repair specifications

Part number: KBJ11820
Diagram pipe number: 48
Installation route: 左过渡阀块(破碎器)~右过渡阀块(破碎器)
Hose specification: DN19;2SN-12;21.5MPa
Finished length: 760 mm
Working pressure: 21.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1
