Individual hose record
4448831 Hose Repair Specifications
Excavator · Hitachi · ZX200LC · Attachments
Finished length650 mm
Locate this hose

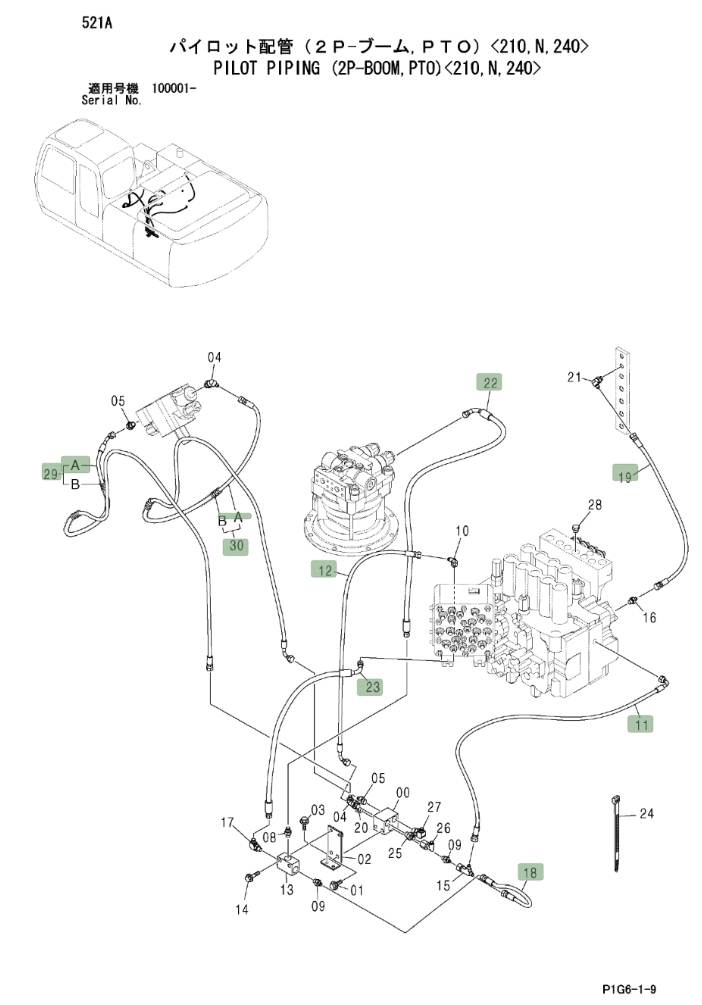

Installation diagram — Pipe No. 19
Locate Pipe No. 19 in the diagram, then confirm part number 4448831 before removing the hose.
Repair specifications
- Part number
- 4448831
- Diagram pipe number
- 19
- Installation route
- 液压油箱~过渡阀块(分节大臂)
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 650 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 3,900 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Length
- 3,450 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 2,000 mm
- Specification
- DN10;2SN-6;34.5MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 3,000 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Length
- 650 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 1,000 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 650 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
