Individual hose record
4435036 Hose Repair Specifications
Excavator · Hitachi · ZX200LC · Attachments
Finished length1,000 mm
Locate this hose

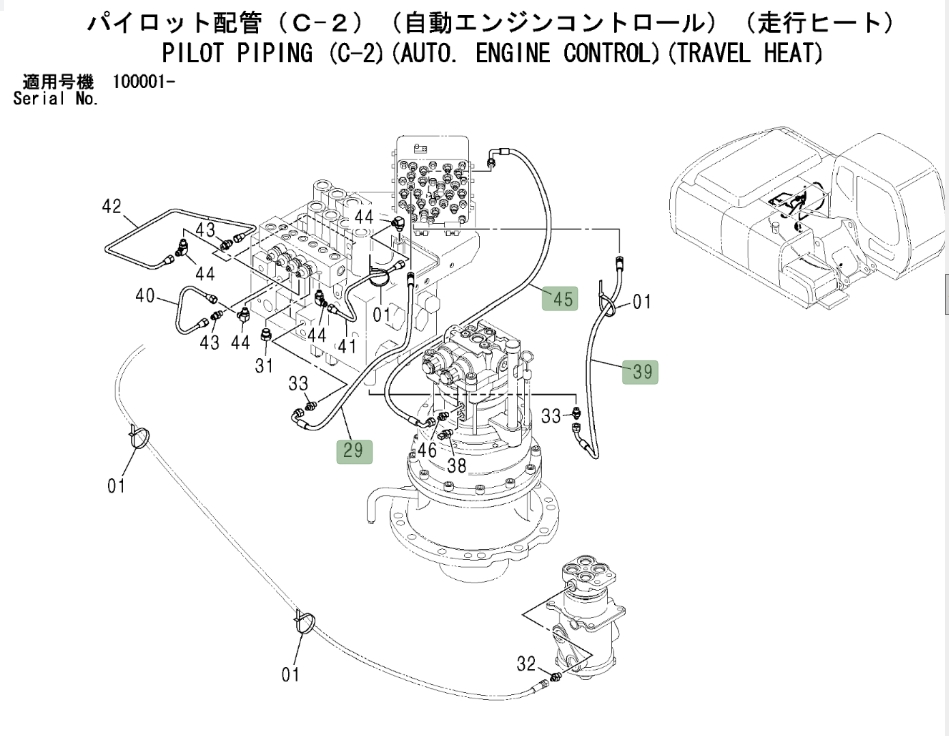

Installation diagram — Pipe No. 39
Locate Pipe No. 39 in the diagram, then confirm part number 4435036 before removing the hose.
Repair specifications
- Part number
- 4435036
- Diagram pipe number
- 39
- Installation route
- 中转接头~分配阀下
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,000 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
