Individual hose record
DH401008 Hose Repair Specifications
Excavator · Hitachi · ZX240F-3 · Hydraulic Pump
Finished length650 mm
Locate this hose

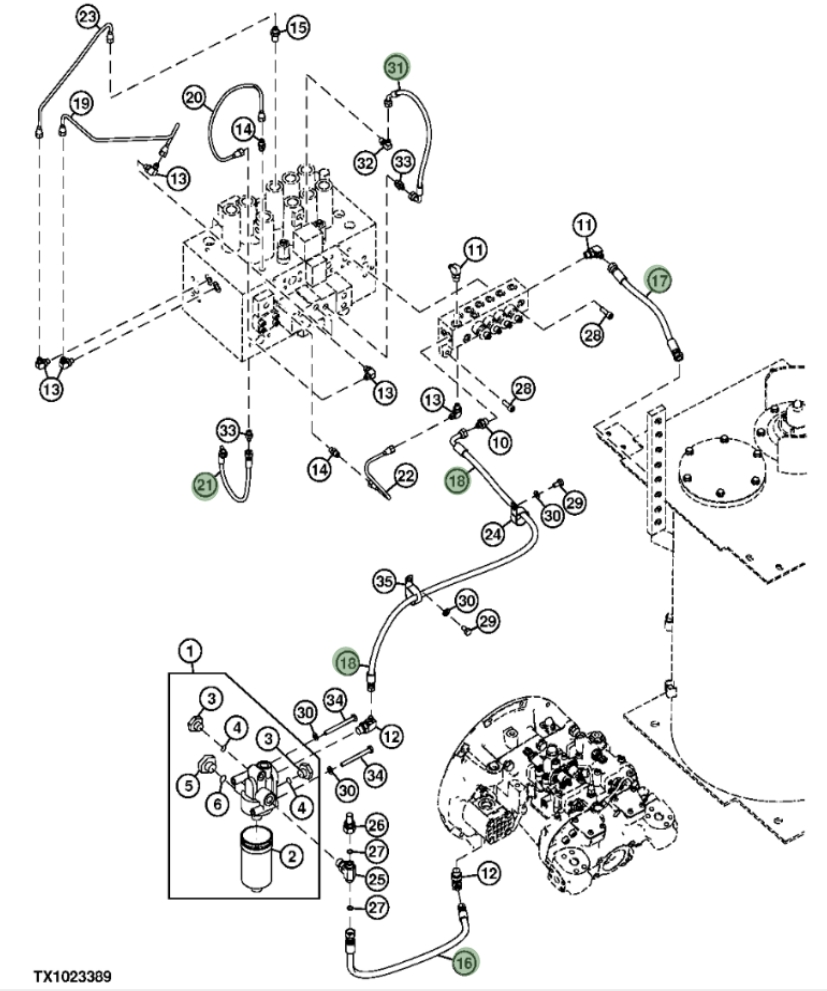

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number DH401008 before removing the hose.
Repair specifications
- Part number
- DH401008
- Diagram pipe number
- 16
- Installation route
- 液压泵~先导滤芯
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 650 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
