- Length
- 650 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Individual hose record
DH401087 Hose Repair Specifications
Excavator · Hitachi · ZX240F-3 · Hydraulic Pump
Finished length2,050 mm
Locate this hose

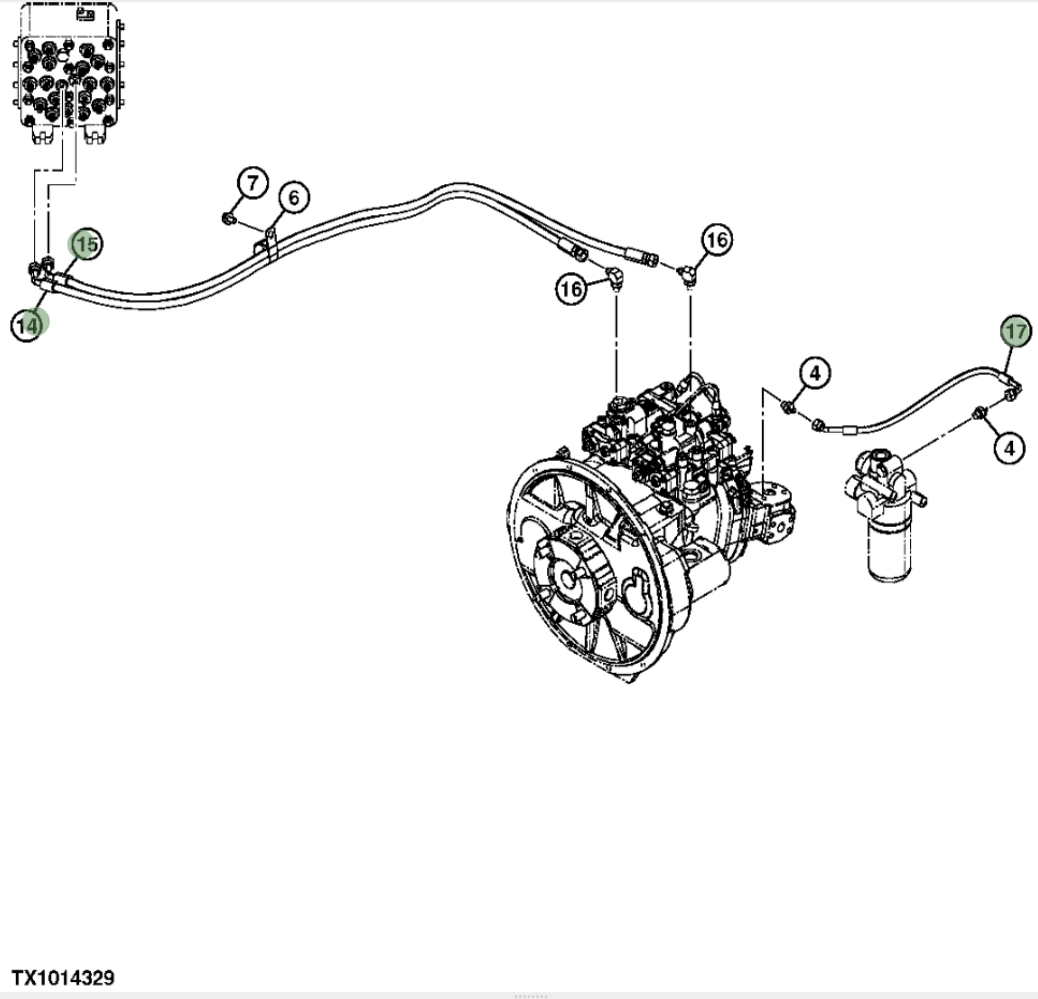

Installation diagram — Pipe No. 15
Locate Pipe No. 15 in the diagram, then confirm part number DH401087 before removing the hose.
Repair specifications
- Part number
- DH401087
- Diagram pipe number
- 15
- Installation route
- 液压泵~中转接头
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,050 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Quantity
- 1
