Individual hose record
4418939 Hose Repair Specifications
Excavator · Hitachi · ZX75US-3 · Attachments
Finished length1,100 mm
Locate this hose

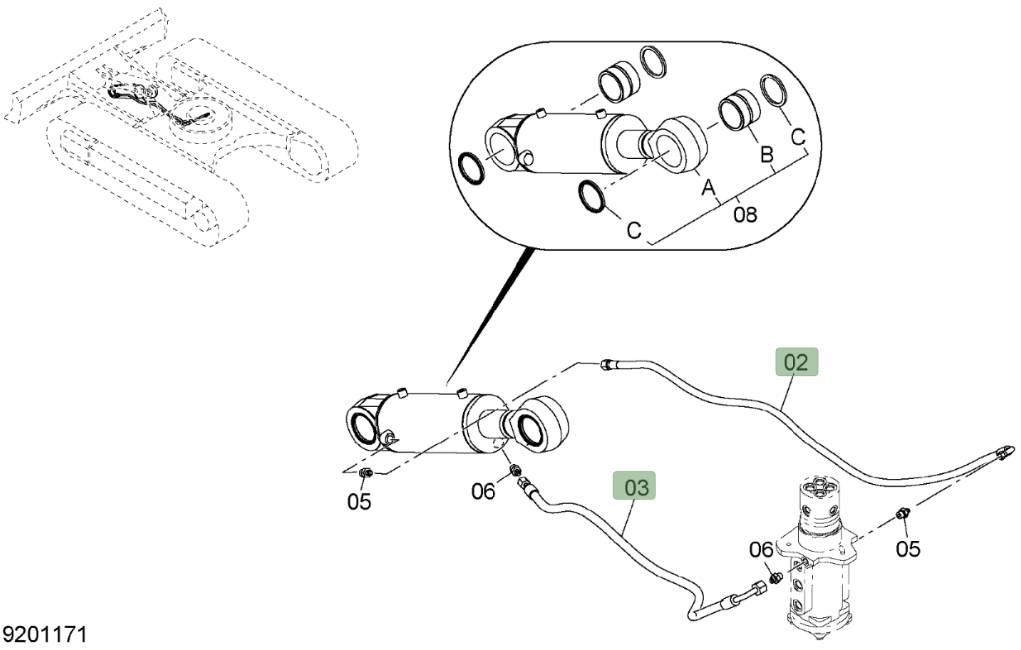

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 4418939 before removing the hose.
Repair specifications
- Part number
- 4418939
- Diagram pipe number
- 3
- Installation route
- 回转接头~推土铲油缸
- Hose specification
- DN12;2SN-8;25Mpa
- Finished length
- 1,100 mm
- Working pressure
- 25 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
