Individual hose record

4710123 Hose Repair Specifications

Excavator · Hitachi · ZX350LC-5N · Hydraulic Tank

Finished length4,500 mm

Locate this hose

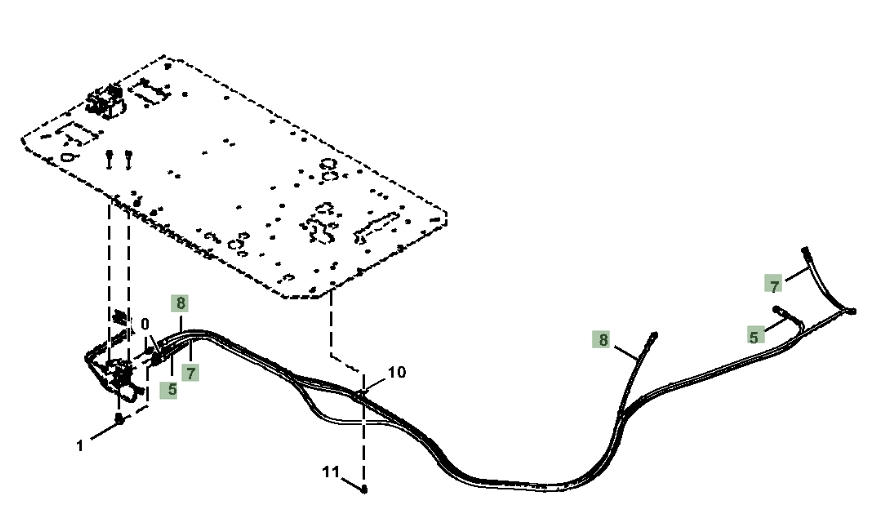

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 4710123 before removing the hose.

Hitachi ZX350LC-5N installation diagram showing hydraulic hose 4710123 at Pipe No. 7 — Hitachi ZX350LC-5NPart 4710123 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 4710123
Diagram pipe number: 7
Installation route: 液压油箱~进回油阀
Hose specification: DN10;1SN-06;18MPa
Finished length: 4,500 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 11

4276003

Installation route: 回油铁管(液压油箱)~

Length: 2,000 mm
Specification: DN6;1SN-04;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 33

4648580

Installation route: 液压油箱~电磁阀

Length: 390 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 12

4657217

Installation route: 回油铁管(液压油箱)~

Length: 1,950 mm
Specification: DN6;1SN-04;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 26

4313426

Installation route: 回油铁管(液压油箱)~先导滤芯

Length: 950 mm
Specification: DN12;1SN-8;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
