Individual hose record
4426461 Hose Repair Specifications
Excavator · Hitachi · ZX50U · Attachments – Breaker
Finished length800 mm
Locate this hose

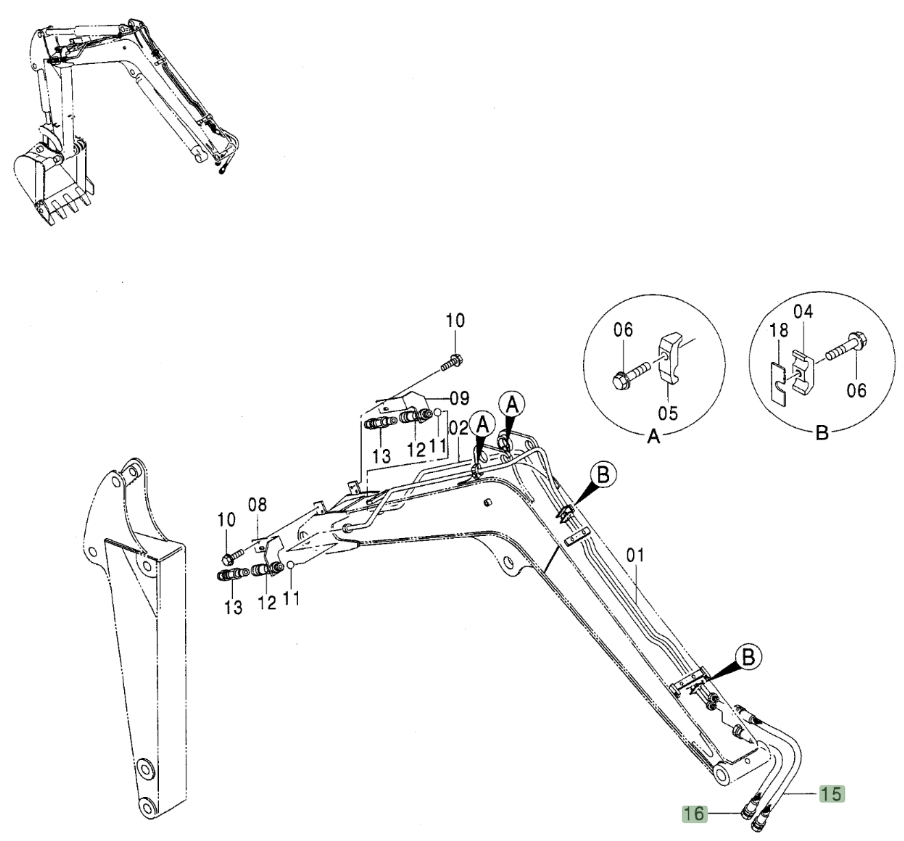

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 4426461 before removing the hose.
Repair specifications
- Part number
- 4426461
- Diagram pipe number
- 16
- Installation route
- 大臂(破碎器)~过渡阀块(大臂下)
- Hose specification
- DN12;2SN-8;27.5MPa
- Finished length
- 800 mm
- Working pressure
- 27.5 MPa
- Left fitting
- 英制内螺纹30°外锥
- Right fitting
- 英制内螺纹30°外锥
- Quantity
- 1
