Individual hose record
730502008265 Hose Repair Specifications
Excavator · Sunward · SWE365F · Control Valve
Finished length980 mm
Locate this hose

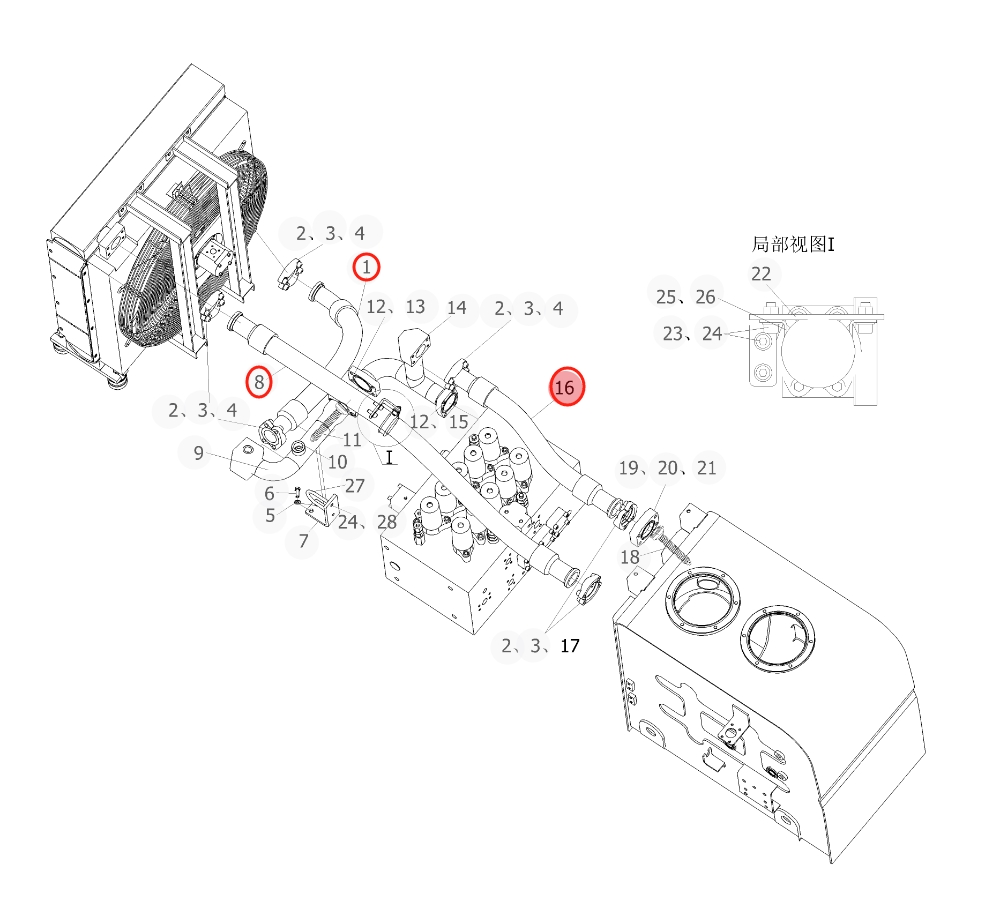

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 730502008265 before removing the hose.
Repair specifications
- Part number
- 730502008265
- Diagram pipe number
- 1
- Installation route
- 分配阀右~散热器
- Hose specification
- DN50;1SN-32;4MPa
- Finished length
- 980 mm
- Working pressure
- 4 MPa
- Left fitting
- Light-series flangeOriginal Chinese: 法兰-轻型
- Right fitting
- 45°法兰-轻型
- Quantity
- 1
