Individual hose record
730504002018 Hose Repair Specifications
Excavator · Sunward · SWE365F · Control Valve
Finished length1,000 mm
Locate this hose

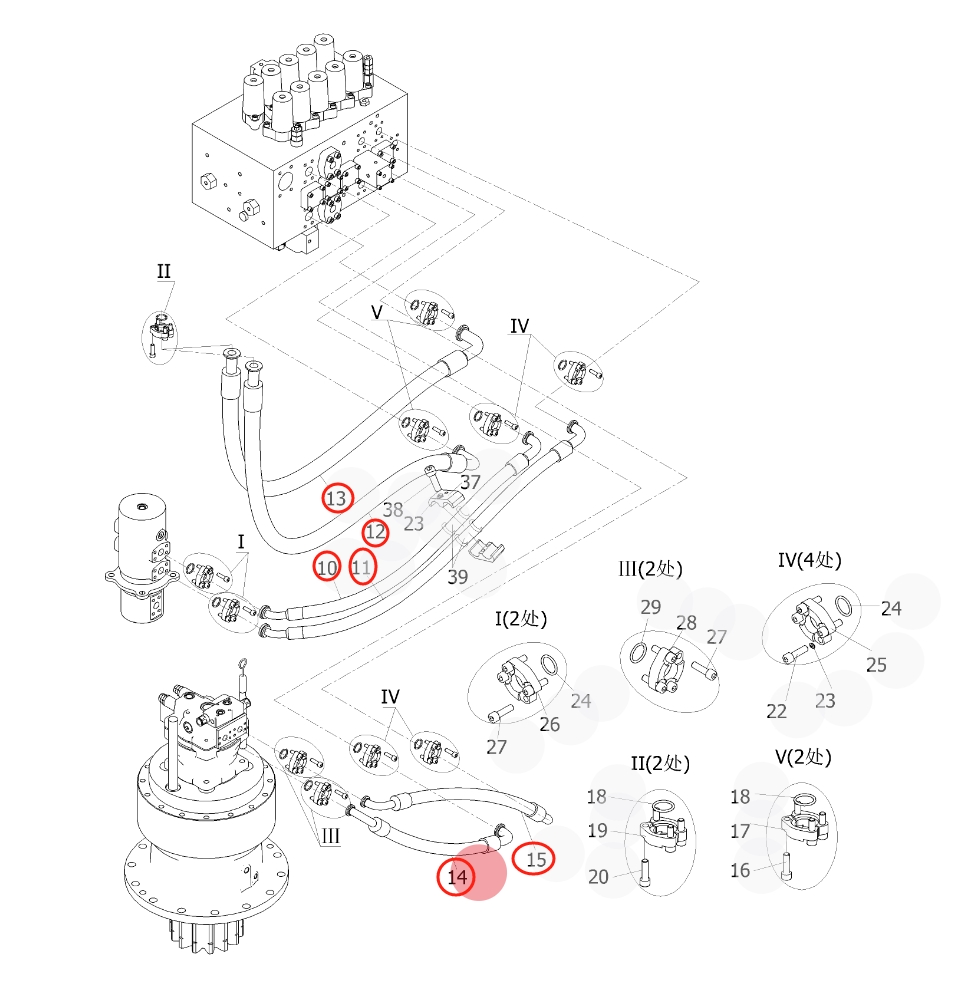

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 730504002018 before removing the hose.
Repair specifications
- Part number
- 730504002018
- Diagram pipe number
- 14
- Installation route
- 分配阀左~回转马达
- Hose specification
- DN25;6SH-16;35MPa
- Finished length
- 1,000 mm
- Working pressure
- 35 MPa
- Left fitting
- 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
- Right fitting
- 90° light-series flangeOriginal Chinese: 90°法兰-轻型
- Quantity
- 1
