- Length
- 1,200 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
Individual hose record
4358996 Hose Repair Specifications
Excavator · Hitachi · EX120-5 · Hydraulic Pump
Finished length950 mm
Locate this hose

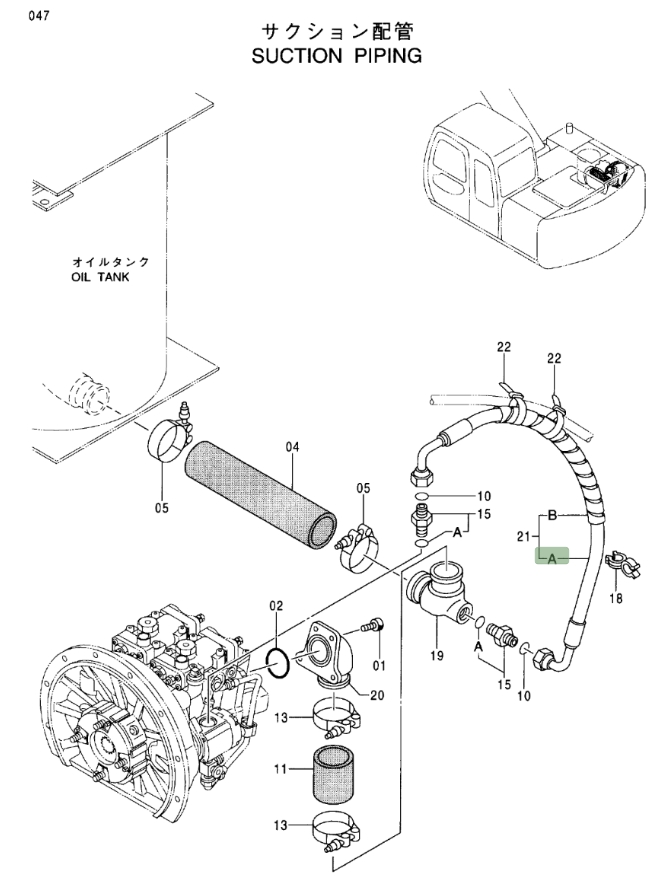

Installation diagram — Pipe No. 21A
Locate Pipe No. 21A in the diagram, then confirm part number 4358996 before removing the hose.
Repair specifications
- Part number
- 4358996
- Diagram pipe number
- 21A
- Installation route
- 液压泵~吸油铁管
- Hose specification
- DN6;1SN-4;20.5MPa
- Finished length
- 950 mm
- Working pressure
- 20.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
