Individual hose record
159217A1 Hose Repair Specifications
Excavator · Case · CX75SR · Boom Assembly
Finished length1,850 mm
Locate this hose

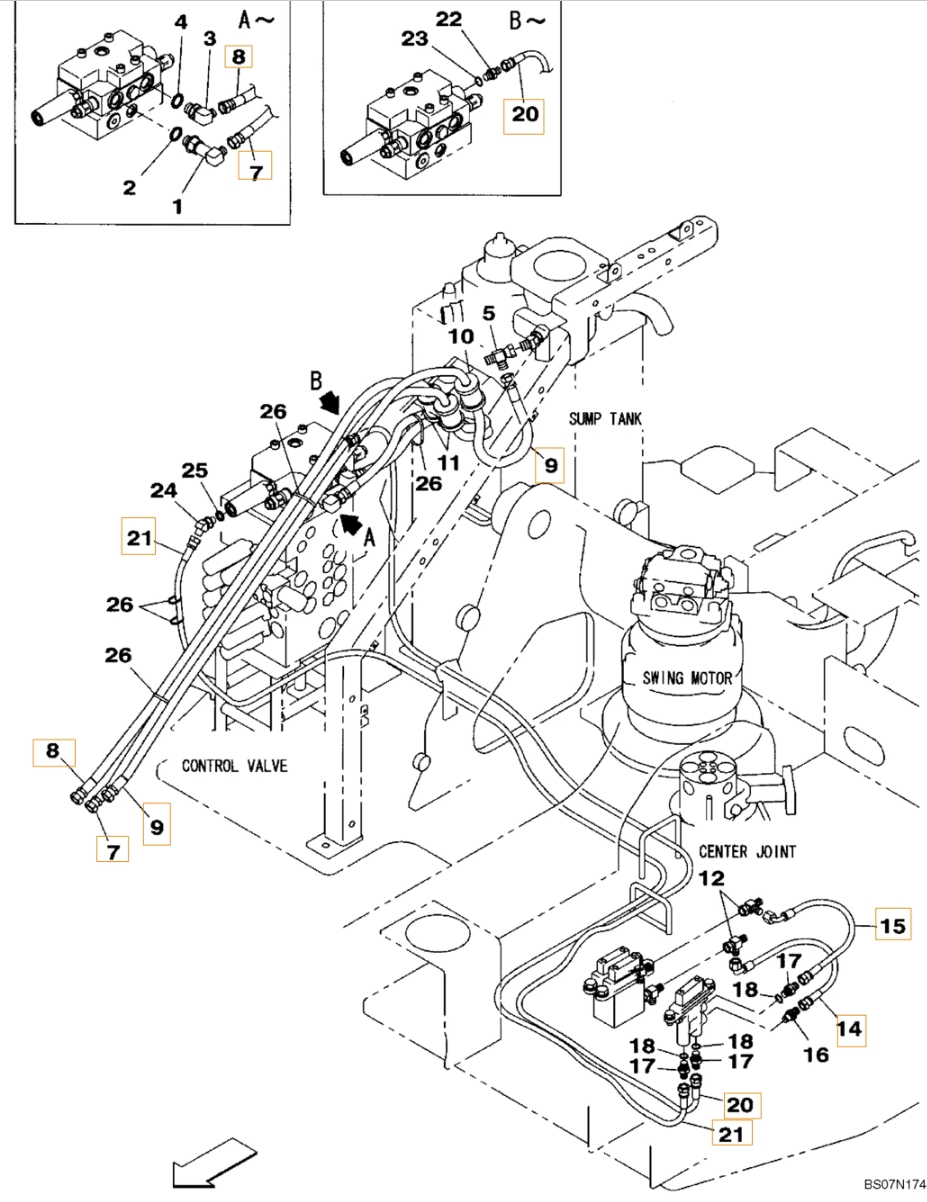

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 159217A1 before removing the hose.
Repair specifications
- Part number
- 159217A1
- Diagram pipe number
- 9
- Installation route
- 大臂~液压油箱
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,850 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
