Individual hose record

DS2121017 Hose Repair Specifications

Excavator · Doosan · DX140LCR-5 · Attachments

Finished length3,170 mm

Locate this hose

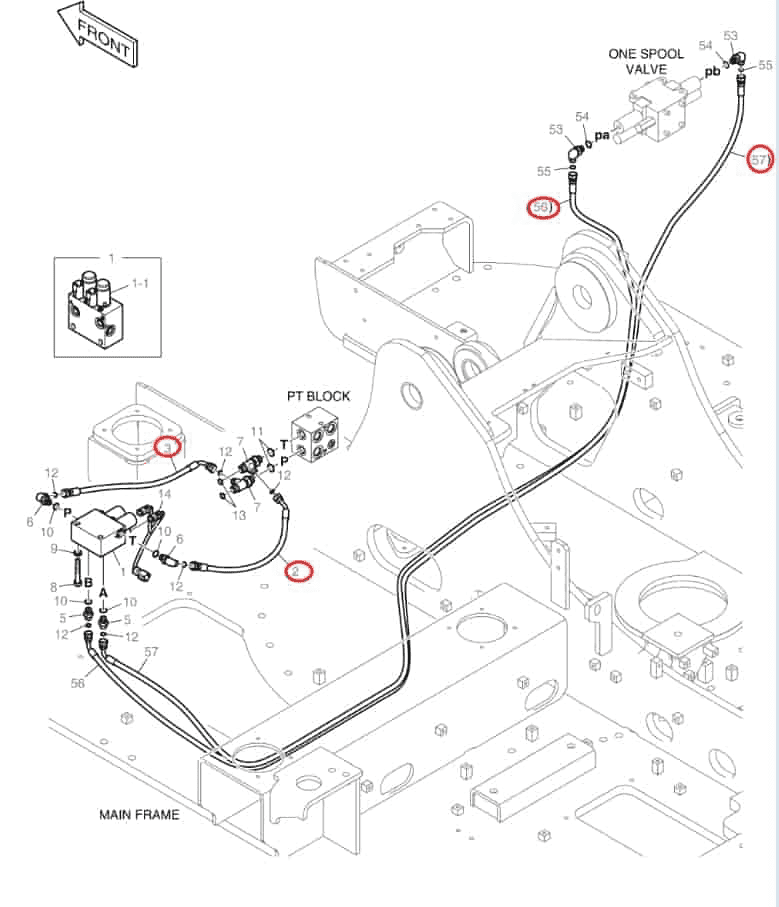

Installation diagram — Pipe No. 56

Locate Pipe No. 56 in the diagram, then confirm part number DS2121017 before removing the hose.

Part number: DS2121017
Diagram pipe number: 56
Installation route: 电控液压动力转向阀B口~控制阀PA口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,170 mm
Working pressure: 22.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 1
